EuroQuartz launches new Statek 30KRAD tolerant oscillators with ultra-high shock rating for low earth orbit applications

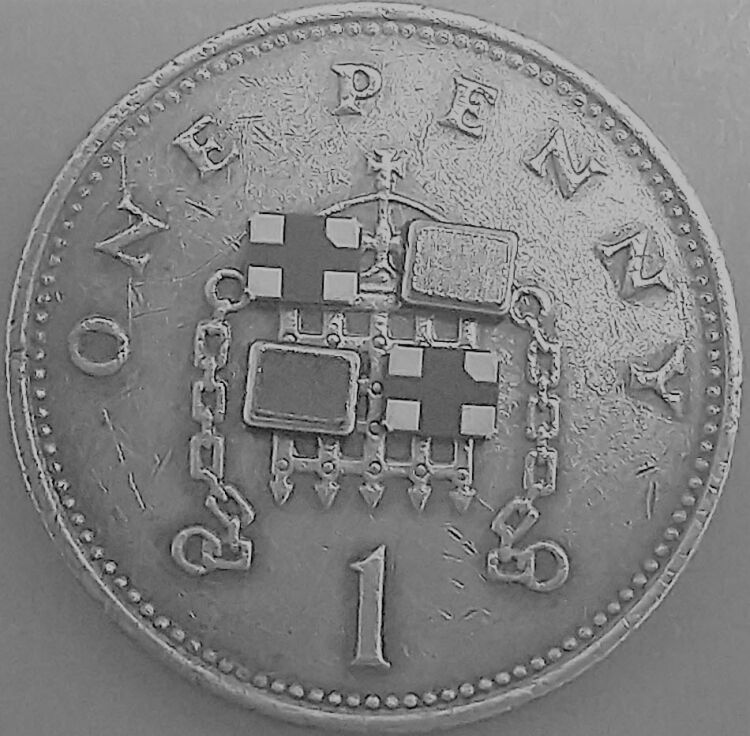

Frequency control specialist, Euroquartz has announced availability of Statek’s new range of 30kRad tolerant, ultra-high shock, low phase-noise oscillators that are ideal for low earth orbit (LEO) applications. Capable of withstanding shocks of up to 100,000g, the new CXOXLPNR surface mount components are housed in hermetically sealed ceramic 3.2 x 2.5mm packages with operating temperature range from -55 to +125°C.

The CXOXLPNR oscillators deliver a low voltage CMOS output with typical low phase-noise of -165dBc/Hz at 125MHz (20MHz offset) combined with typical low RMS phase jitter of 150fs over 12kHz to 20MHz and low acceleration sensitivity. Output frequencies from 20 to 125MHz are available with supply voltage range from 1.8 to 3.3V ±10%.

Ideal for low earth orbit and small satellite applications, the new CXOXLPNR oscillators can be MIL screened for aerospace and defence programmes such as communications/GPS and supplied for use in industrial environments.

Additional specifications include frequency-temperature stability of ±100 to ±25ppm (industrial) or ±100 to ±50ppm (military), output load of 15pF, start-up time of 5ms maximum, duty cycle of 45% minimum, 55% maximum and first year ageing of 2ppm maximum. Supplied in tray packs or tape and reel per EIA 481, the components can withstand maximum process temperature of 260°C for 20 seconds.

FEATURES

• 30 kRad (Si) Total Ionizing Dose
• High shock resistance, three point mount*
• 100,000 g option
• 3.2 x 2.5 mm miniature package, other package options available
• CMOS output with Enable/Disable
• Low phase noise and jitter
• Full military testing available
• Low acceleration sensitivity
• Wide supply voltage options (1.8 V to 3.3 V)
• No PLL artifacts
• Hermetically-sealed ceramic package
• Designed and manufactured in the USA


Datasheet

Statek Corporation is the leading US designer and manufacturer of high reliability crystals and oscillators. Statek’s core competency is its ability to design and manufacture ultra-miniature resonators in quartz wafers using its patented photolithographic and chemical milling processes. Founded in 1970, Statek has become the premier supplier of high shock and high vibration crystals and oscillators for all industries requiring high reliability and extremely robust performance. With superior shock and vibration, extended temperature ranges, small size and extreme high reliability, Statek is the supplier of choice for the Industrial, Military, Medical, and Space industries.

Euroquartz is an independent UK-based manufacturer and supplier of quartz crystals, oscillators, filters and frequency-related products to the electronics manufacturing industry worldwide. The company is AS9100 registered and designs and manufactures a comprehensive range of frequency control components for a wide range of customers including major OEMs covering a broad spectrum of applications including defence and aerospace, communications, general electronics, computing, control systems and petrochemical among many others.
