3-in-1 combo antenna for 4G / LTE, Wi-FI and active GNSS - YEMA300QXA - Quectel
February 8, 2024
This antenna is a 3-in-1 4G, Wi-FI and active GNSS combo antenna and offers extensive coverage across 4G frequencies, supports both 2.4 an 5 GHz Wi-Fi bands, and ensures reliable GNSS performence. Additionally, the YEMA300QXA comes in a compact enclosure, prioritizing efficency and seamless integration.

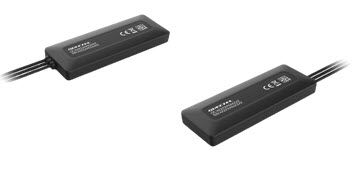

This 3-in-1 adhesive mount combo antenna measures 143.73mm × 51.33mm × 15mm and is optimized for 4G/LTE, Wi-Fi/BT and GNSS connectivity, with a durable IP67 rated PC casing and connection via 1028±28mm cables and SMA (male) connectors. The antenna is RoHS compliant and features efficiency of up to 50% and GNSS LNA gain of 18dB±3. Quectel provides comprehensive antenna design support such as simulation, testing and manufacturing for custom antenna solutions to meet your specific application needs.
Summery
- Optimized for LTE and Wi-Fi/BT networks
- Adhesive mount
- SMA male connectors
- Durable PC casing
Key Features
- Frequency - LTE: 700-960MHz, 1700-2700MHz
- Frequency - Wi-Fi/BT: 2400-2500MHz, 5150-5850MHz
- Frequency - GNSS: 1559-1606MHz
- Maximum efficiency: 50%
- GNSS LNA gain: 18 ±3 dB
- Dimensions: 143.73mm × 51.33mm × 15mm
- Cable length: 1028±28mm
- RoHS compliant
- IP rating: IP67
Our technical sales and support team can help you with your design.
Contact us to learn more about this 3-in-1 combo antenna for 4G / LTE, Wi-FI and active GNSS.
