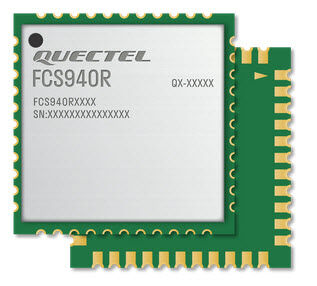

FCS940R is a high-performance 2.4GHz Wi-Fi 4 and Bluetooth module in LCC package with an ultra-compact formfactor of 12.0mm × 12.0mm × 2.0mm. It enables seamless WLAN and Bluetooth connectivity and is designed to optimize end-product size and cost. It incorporates reliable SDIO 2.0 and HS-UART interfaces to provide robust WLAN capability.

FCS940R is a Bluetooth 4.2 compliant module that supports dual mode (BR/EDR + Bluetooth Low Energy). It enables scatternet topology and active links in both slave and master modes for BR/EDR. In Bluetooth Low Energy mode, it supports multiple functions, such as monitoring, broadcasting, scanning, and allows active links in master mode. Therefore, this module offers a comprehensive solution for high throughput performance in wireless LAN and Bluetooth applications.

Surface-mount technology (SMT) makes FCS940R an ideal solution for durable and rugged designs. The low profile and compact size of LCC package enable seamless integration into size-constrained applications, ensuring reliable connectivity. The advanced package design, combined with a laser-engraved label, improved heat dissipation and indelible markings allow for large-scale automated manufacturing, meeting stringent cost and efficiency requirements.


  • Wi-Fi 4 and Bluetooth 5.0 module
  • Max. data rate of 150 Mbps
  • LCC form factor
  • 12.0 mm × 12.0 mm × 2.0 mm
  • 0.53 g
  • Operating temperature range of 0°C to + 70°C/-20°C to + 80°C (optional)

Key Features

  • Single band (2.4 GHz) Wi-Fi and Bluetooth 5.0
  • SDIO 2.0 interface that supports higher data transmission rate and enables lower power consumption
  • Faster time-to-market: simple design minimizes design-in time and development efforts
  • Wide operating temperature range: 0°C to + 70°C/-20°C to + 80°C (optional)
