2-Phase Stepping Motors with the Industry's Highest Torque - Sanyo Denki

September 14, 2021

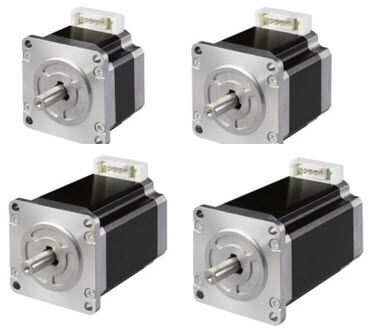

The SANMOTION F2 56 mm sq. 2-Phase Stepping Motors has the Industry's Highest Torque, expanding the product lineup of the series.

The new models achieve best-in-class(1) torque performance and high efficiency, therefore improving machine speed and contributing to energy savings.



Features

1. High Torque
Compared to our conventional model, torque performance has improved by approximately 40%.(2)
This contributes to shortening the positioning time and machine cycle time.

2. Low Noise
These motors have noise levels approximately 3 dB lower than the current model, reducing the noise level of machines.(2)

3. Energy Saving
Motor efficiency has been improved by approximately 3% compared to the current model.(2)
This contributes to reducing power consumption of machines and the motor’s heat dissipation.

(1) Based on our own research as of May 25, 2021, conducted among equally sized industrial 2-phase stepping motors on the market.
(2) A comparison between our current model 103H7123-5840 and new model SM2562C30B41.



Motor Specifications

Unipolar winding, connector type

Model no. Flange size
× Motor length
[mm]
Holding torque
at 2-phase excitation
[N·m]
Rated current
[A/phase]
Mass
[kg]
Single shaft Dual shaft
SM2561C10U41 SM2561C10U11 56 x 41.8 0.53 1 0.49
SM2561C20U41 SM2561C20U11 56 x 41.8 0.53 2 0.49
SM2561C30U41 SM2561C30U11 56 x 41.8 0.53 3 0.49
SM2562C10U41 SM2562C10U11 56 x 53.8 1.1 1 0.69
SM2562C20U41 SM2562C20U11 56 x 53.8 1.1 2 0.69
SM2562C30U41 SM2562C30U11 56 x 53.8 1.1 3 0.69
SM2563C10U41 SM2563C10U11 56 x 75.8 1.7 1 1.1
SM2563C20U41 SM2563C20U11 56 x 75.8 1.7 2 1.1
SM2563C30U41 SM2563C30U11 56 x 75.8 1.7 3 1.1
SM2564C10U41 SM2564C10U11 56 x 85.8 1.75 1 1.27
SM2564C20U41 SM2564C20U11 56 x 85.8 1.75 2 1.27
SM2564C30U41 SM2564C30U11 56 x 85.8 1.75 3 1.27



Bipolar winding, connector type

Model no. Flange size
× Motor length
[mm]
Holding torque
at 2-phase excitation
[N·m]
Rated current
[A/phase]
Mass
[kg]
Single shaft Dual shaft
SM2561C10B41 SM2561C10B11 56 x 41.8 0.75 1 0.49
SM2561C20B41 SM2561C20B11 56 x 41.8 0.75 2 0.49
SM2561C30B41 SM2561C30B11 56 x 41.8 0.75 3 0.49
SM2561C40B41 SM2561C40B11 56 x 41.8 0.75 4 0.49
SM2561C60B41 SM2561C60B11 56 x 41.8 0.75 6 0.49
SM2562C10B41 SM2562C10B11 56 x 53.8 1.4 1 0.69
SM2562C20B41 SM2562C20B11 56 x 53.8 1.4 2 0.69
SM2562C30B41 SM2562C30B11 56 x 53.8 1.4 3 0.69
SM2562C40B41 SM2562C40B11 56 x 53.8 1.4 4 0.69
SM2562C60B41 SM2562C60B11 56 x 53.8 1.4 6 0.69
SM2563C10B41 SM2563C10B11 56 x 75.8 2.35 1 1.1
SM2563C20B41 SM2563C20B11 56 x 75.8 2.35 2 1.1
SM2563C30B41 SM2563C30B11 56 x 75.8 2.35 3 1.1
SM2563C40B41 SM2563C40B11 56 x 75.8 2.35 4 1.1
SM2563C60B41 SM2563C60B11 56 x 75.8 2.35 6 1.1
SM2564C10B41 SM2564C10B11 56 x 85.8 2.5 1 1.27
SM2564C20B41 SM2564C20B11 56 x 85.8 2.5 2 1.27
SM2564C30B41 SM2564C30B11 56 x 85.8 2.5 3 1.27
SM2564C40B41 SM2564C40B11 56 x 85.8 2.5 4 1.27
SM2564C60B41 SM2564C60B11 56 x 85.8 2.5 6 1.27



Applications

Medical devices, industrial equipment, semiconductor manufacturing equipment, conveying machines, and index table driving.
