150-Watt DC-DC Converter for Railway and Industrial Applications - Calex

November 21, 2019

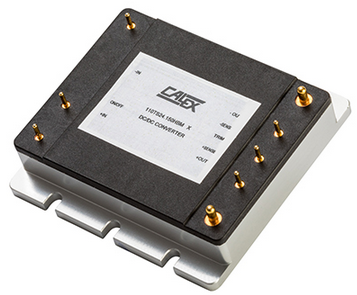

Optimized for harsh environments, the HBM DC-DC converter series delivers regulated outputs in an industry-standard half-brick fully encased package.

Calex Manufacturing Company, Inc. today announced the release of the ruggedized HBM Series of DC-DC converters, meeting the most stringent performance standards for industrial, railway and transportation applications. The converters have been designed and tested to meet the requirements of the EN50155 railway standard and are ideal for use in rolling stock with 96V to 110V traction batteries typically seen in intercity, regional, high-speed and freight train applications.

The 150-Watt HBM Series offers the latest technology in fixed frequency power conversion. Designed to achieve high reliability and high efficiency, the HBM Series incorporates the latest circuit technologies along with proprietary packaging and thermal management techniques that meet critical and harsh environmental requirements often seen in industrial and railway applications. For most optimized thermal management, the HBM Series is available with either a standard flanged, slotted baseplate or an option with four M3 inserts, stand-offs.

The HBM Series delivers output voltages of 5V, 12V or 24V with an input voltage range of 57.6V – 160V and transients for 100ms to 170V. The converters have excellent regulation, low ripple and noise, and operate at a fixed switching frequency of 200 kHz. Housed in a fully encased package with an industry standard half-brick footprint, the HBM Series operates at full power over a -40 ⁰C to +100 ⁰C baseplate temperature range.


Productinformation

All models in the 150 W HBM Series feature a reinforced I/O isolation rated at 3kVrms; wide input voltage range; remote sense and trim function, allowing the user to compensate for output voltage variations within +/-10% of Vout. Mindful of battery powered applications, an ON/OFF function with either positive or negative polarity is offered to minimize power consumption when the converter is in stand-by or off state. All HBM models incorporate over-current, short-circuit and over-temperature protection. The HBM series is UL/EN60950-1 safety approved and RoHS compliant.
