Product specifications
Quectel SC200E-WF 2GB+32GB
SC200E series is Quectel’s new generation of multi-mode Smart LTE Cat 4 module. Based on Qualcomm 64-bit quad core Cortex-A53 processors with built-in AdrenoTM 702 GPU, it is ideal for both industrial and consumer applications requiring high data rate, multimedia functions and long lifetime support. SC200E series is available in five variants: SC200E-CE, SC200E-EM, SC200E-NA, SC200E-JP① and Wi-Fi & Bluetooth only version SC200E-WF.
SC200E series supports multiple-input multiple-output (MIMO) technology. The use of multiple antennas at the receiver end on the same frequency band greatly minimizes errors and improves the data speed. This module also combines high-speed wireless connectivity with embedded multi-constellation and high-sensitivity GNSS receiver supporting GPS, BDS, GLONASS, Galileo, QZSS, SBAS (SC200E-NA supports NavIC and L1 + L5) for positioning.
A rich set of interfaces (such as LCM, Camera, Touch Panel, MIC, Line Out, UART, USB, I2C and SPI) extend the applicability of the module to a wide range of M2M applications, including edge device, edge computing, smart POS, smart cash registers, smart home gateways, smart robots, smart wearables, security surveillance, PDA & tablets, vending machines, delivery lockers, video streaming and entertainment systems, etc.
Key Features:
- Exceptional application and system performance based on the quad-core Cortex-A53 64-bit processor
- Enhanced mobile rendering APIs for image and video applications via AdrenoTM 702 GPU
- Worldwide LTE, UMTS/HSPA+ and GSM/GPRS/EDGE coverage
- Dual ISP and up to 25 MP camera @ 30 fps
- Recording and playback of 1080P videos @ 30 fps
- Multi-constellation GNSS receiver for applications requiring fast and accurate fixes in any environmen
LTE SC200E Smart Module series:
- Multi-mode Smart LTE Module with Wi-Fi & Bluetooth
- Android 12, 13, 14 OS
- LCC + LGA package

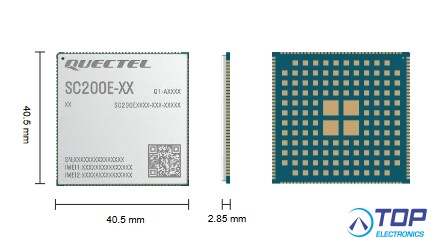

- 40.5mm × 40.5mm × 2.85mm
- 10.3g
- Max. data rates of 150Mbps downlink and 50Mbps uplink
- Operating temperature of -35°C ~ +75°C
- Quectel Wireless Solutions product -
