Product specifications

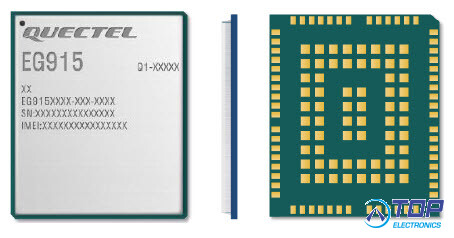

EG915U-EU - LTE-module Cat.1 - 23.6 x 19.9 x 2.4 (EG915UEUAB-N05-SNNSA
Quectel EG915U 4G Module Specifications：
* Product type: 4G Module
* Chipset:
* LTE Category: LTE Cat1
* Form factor: LGA
* Dimensions: 23.6 × 19.9 × 2.4mm
* Frequency Bands:
Quectel EG915U-CN (For China and India market)
- LTE-FDD Bands: B1/B3/B5/B8
- LTE-TDD Bands: B34/B38/B39/B40/B41
- GSM Bands:B3/B8
Quectel EG915U-EU(For Europe market)
- LTE-FDD Bands: B1/B3/B5/B7/B8/B20/B28
- GSM Bands: B2/B3/B5/B8
Quectel EG915U-LA (For Latin American market)
- LTE-FDD Bands: B2/B3/B4/B5/B7/B8/B28/B66
- GSM Bands: B2/B3/B5/B8
* Weight：2.48g
* Temperature range:
- -35°C ~ +75°C (Operation Temperature)
- -40°C ~ +85°C (Extended Temperature)
* Data Transmission Rates:
- LTE: Max. 10Mbps (DL)/ Max. 5Mbps (UL)
- GPRS: Max. 85.6Kbps (DL)/ Max. 85.6bps (UL)
* Protocols: TCP/UDP/PPP/FTP/HTTP/NTP/PING/QMI/NITZ/CMUX/HTTPS/SMTP/MMS/FTPS/SMTPS/SSL/FILE
* Interfaces:
- (U)SIM: 1.8V/ 3.0V
- UART x 3
- USB 2.0
- IIL x 1
- PCM
- SD: ?
- SGMII: N/A
- ADC X 2
- Antenna: Main antenna, BT/WiFi scan antenna
* Enhanced Features
- DTMF:
- DFOTA: N/A
- FOTA
- Audio replay/recording
- QuecFile
* Electrical Features
- Supply Voltage Range: 3.3V~4.3V, 3.8V Typ.
- Power Consumption
>30μA @Power off
>1.3mA @Sleep, Typ.
>13mA @Idle
* Software Features
- USB Serial Driver
> Windows 7/8/8.1/10,
> Linux 2.6~5.12,
> Android 4.x ~ 11.x
- RIL Driver: Android 4.x ~ 11.x
- GNSS Driver: N/A
- RNDIS Driver: Windows 7/8/8.1/10, Linux 2.6 ~ 5.12
- ECM Driver: Linux 2.6 ~ 5.12
- (U)SIM card insert inspect
- Firmware update: USB or FOTA
* Certifications/Approvals: CE*/RCM*/GCF*/Anatel*
* Carriers: China Mobile/China Unicom/China Telecom
* Applications: POS, POC, ETC, Data card, Energy control, City management and Industrial PDA etc....
Quectel EG912Y refers to a series of LTE Cat 1 modules optimized specially for M2M and IoT application. Adopting the 3GPP Rel. 9 LTE technology, EG912Y delivers data rates of 10 Mbps downlink and 5 Mbps uplink. Designed in a compact and unified form factor, EG912Y is compatible with Quectel multi-mode LTE Standard LTE Cat 1/Cat 4 EG9x, LTE Cat M1/Cat NB1 BG36 and UMTS/HSPA+ UG35/UG96 modules, which allows flexible migration of EG912Y from 3G network to 4G network.
EG912Y undergoes the laser engraving process to ensure better appearance, stronger metal texture and faster heat dissipa-tion, and to ensure that information is less erasable and EG912Y better meets automaton requirements.
A rich set of Internet protocols, industry-standard interfaces and abundant functionalities (USB drivers for Windows 7/8/8.1/10, Linux and Android) help extend the applicability of EG912Y to a wide range of M2M and IoT application such as industrial router, industrial PDA, tablet PC, video surveillance, and digital signage.
Key Benefits
- LTE Cat module optimized for M2M and IoT applications
- LTE, GSM/GPRS/EDGE coverage
- Support Firmware Upgrade Over-The-Air (FOTA) *
- Rich multimedia hardware interfaces for intelligent applica-tions
- Super cost-effective
- Quectel Wireless Solutions product -
