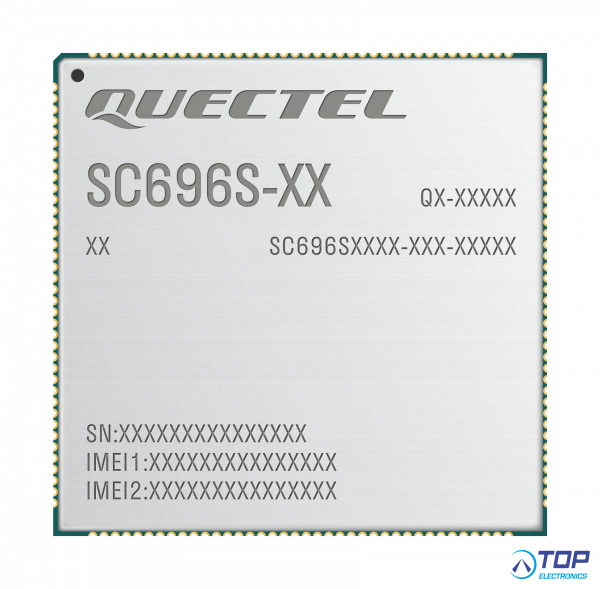

SC696-NA, LTE Cat 4, Smart module, with Wi-Fi & BT

More information

Stock
Out of stock
Delivery time
please contact us for more information
Part number
SC696-NA
Manufacturer / supplier
Quectel Wireless Solutions
€ 108.02 excl VAT
Contact us Technical support Quotation request

Product specifications

LTE SC696S Smart Module series

The SC696S series is Quectel’s new generation of multi-mode LTE Cat 4 smart module with built-in Linux OS. Based on QCM6125 high-performance 64-bit octa-core processors with built-in Adreno 610 GPU, it is an ideal solution for a wide range of industrial and consumer applications requiring high data rates and multimedia functions. The SC696S series comes in three variants: SC696S-EM, SC696S-NA and SC696S-WF (only supports Wi-Fi and Bluetooth) .

The SC696S series supports multiple-input multiple-output (MIMO) technology. The concurrent use of multiple antennas at the receiver end on the same frequency band greatly minimizes bit error rate and optimizes the data speed, thereby improving communication quality. The module also supports multi-constellation GNSS (GPS, GLONASS, BDS, Galileo, QZSS and SBAS) receiver for fast and accurate positioning.

A rich set of interfaces (such as LCM, camera, touch panel, UART, USB, I2C, I2S and SPI) are integrated allowing the module to serve a wide range of M2M applications, including smart cash registers, smart POS, tax control machines, security surveillance, on-board equipment, high-end information acquisition equipment, smart robots, smart homes, smart hardware, industrial smart handheld equipment, drones, smart interphones, smart wearables, vending machines, logistics cabinets, etc.

Summary:
- LTE Cat 4 smart module with built-in Linux OS
- 43.0mm × 44.0mm × 2.85mm
- 12g
- LCC+LGA package
- Max. data rates of 150Mbps DL / 50Mbps UL
- Temperature range of -35°C to +75°C

Key Features:
- Exceptional system performance based on Qualcomm 64-bit octa-core ARM Kryo 260 processors
- Built-in Qualcomm high-performance Adreno 610 graphics engine
- Worldwide LTE, UMTS/HSPA+ and GSM/GPRS/EDGE coverage
- MIPI DSI (resolution of up to 1920 ×1200 @ 60fps or 1080×2520 @ 60fps)
- Maximum 6 cameras, and supports two concurrently-working cameras
- Multi-constellation GNSS receiver available for applications requiring fast and accurate fixes in any environment
- Recording and playback of 4K videos @ 30fps

Module Variants:
- SC696S-EM - Region/Operator: EMEA/ Korea/ South Asia/ Latin America/India/ Australia/ New Zealand/ South Africa
- SC696S-NA - Region/Operator: North America
- SC696S-WF - Wi-Fi and Bluetooth only - Region/Operator: Global

- Quectel Wireless Solutions product -
