Product specifications
Quectel EEP06-E

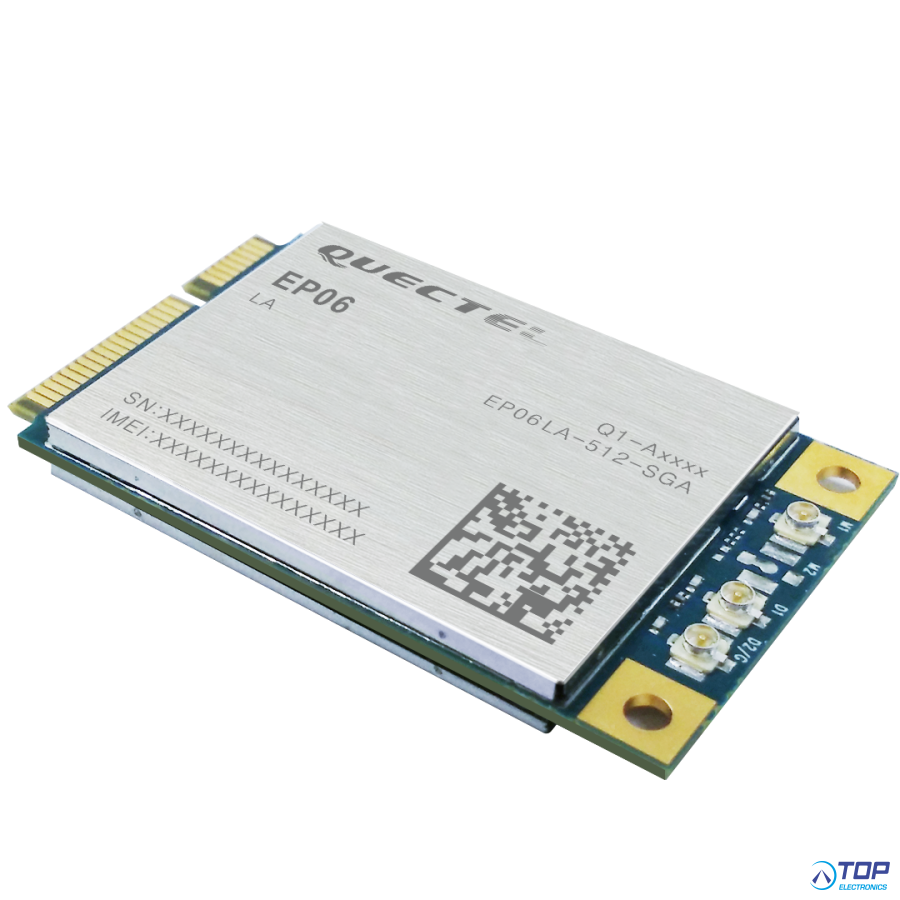

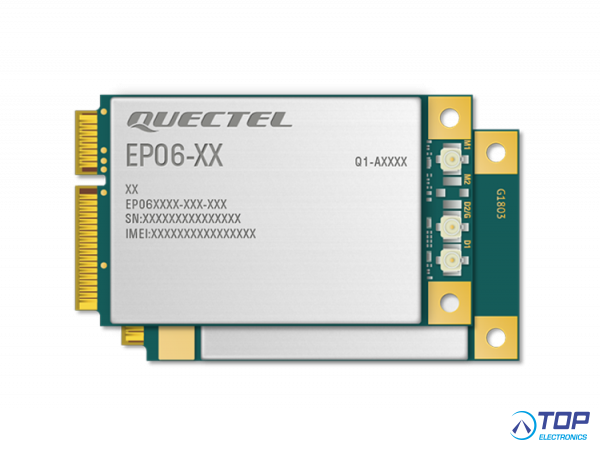

Quectel EP06 is a series of LTE Advanced category 6 module optimized specially for M2M and IoT applications. Adopting the 3GPP Rel. 12 LTE technology, it delivers M2M-optimized speeds of 300Mbit/s downlink and 50Mbit/s uplink peak data rates. Designed in the Mini PCIe form factor, EP06 is compatible with Quectel future Cat 12 module EP12 and Cat 16 module EP16, which will help customers to migrate between different categories in the future.
EP06 contains 4 variants (EP06-E, EP06-A, EP06-LA and EP06-APAC) which are designed for different target regions and nearly cover all the main stream carriers worldwide.
EP06 supports Qualcomm® IZat™ location technology Gen8C Lite (GPS, GLONASS, BeiDou, Galileo and QZSS). The integrated GNSS greatly simplifies product design, and provides quicker, more accurate and more dependable positioning capability.
A rich set of Internet protocols, industry-standard interfaces and abundant functionalities (USB drivers for Windows 7, Windows 8/8.1, Windows 10, Linux, Android/eCall) extend the applicability of the module to a wide range of M2M and IoT applications such as industrial router, home gateway, STB, industrial PDA, rugged tablet PC, video surveillance and digital signage, etc.
Key Benefits
- LTE-A Cat 6 module with Mini PCIe form factor, optimized for M2M and IoT applications
- Support LTE-A carrier aggregation
- Worldwide LTE-A and UMTS/HSPA+ coverage
- Multi-constellation GNSS receiver available for applications requiring fast and accurate fixes in any environment
- Feature refinements: supports DFOTA, eCall* and DTMF
- MIMO technology meets demands for data rate and link reliability in modem wireless communication systems
- Quectel Wireless Solutions product -
