Product specifications

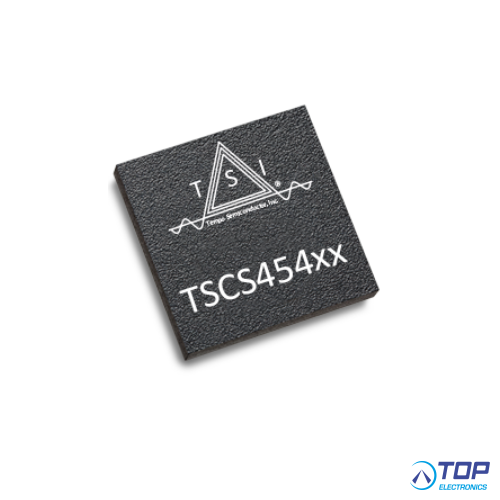

TSCS454XX1NTGXZAX
Multichannel CODEC + Headphone Amp + Analog Mic
The TSCS454xx is a low-power, high-fidelity CODEC with an integrated fixed function audio DSP targeted to consumer, professional, commercial and industrial applications such as personal audio appliances that require support for multichannel analog or digital inputs and outputs. The CODEC also integrates a filterless 3W/channel (4Ω) stereo speaker amplifier, mono earpiece amplifier / subwoofer line out, and a ground-referenced, capless stereo Class-H 40mW (16Ω) headphone amplifier.
Features
High fidelity 32-bit stereo CODEC
DAC 124dB SNR / 102dB DNR; THD+N better than -82dB
ADC 90dB SNR, THD+N better than -80dB
Stereo Input Side and Output Side ASRCs
I2S / LJ / RJ / Intel TDM / Traditional TDM input data interface in addition to 2 x I2S / LJ / RJ input data interfaces
Capable of accepting up to 4 discrete channels of analog or digital audio
I2S / LJ / RJ / Intel TDM / Traditional TDM output data interface in addition to 2 x I2S / LJ / RJ output data interfaces
Capable of outputting up to 5 discretely processed channels of analog or digital audio
Built in audio controls and processing
3D Stereo Enhancement
Up to 24-bands (12-bands / channel) of fully configurable peaking parametric equalizers / configurable alternate filters (HPF, LPF, etc)
Multiband Compressor / Limiter / Expander
Wideband DRC
Psychoacoustic Bass and Treble Enhancement
Filterless Stereo DDX™ Class-D Speaker Driver
3W/channel (4Ω), 10% THD+N typical
1W/channel (8Ω) or 2W/channel (4Ω), 0.05% THD+N typical
Tri-state DDX Class-D achieves low EMI and high-efficiency
>80% efficiency at 1W
Spread spectrum support for reduced EMI output power mode
Anti-Pop circuitry
On-chip capless headphone driver
39mW output power (16Ω)
Charge-pump allows true ground-centered outputs
124dB SNR / 102dB DNR
Headphone detection
Microphone/line-in interface
Analog microphone, digital microphone or line-in inputs
Automatic level control
On-chip low-jitter PLL for internal audio clock generation
Supports an use of an external MCLK source or low-cost XTAL
Optimized for frequencies of 11.2896MHz or 12.288MHz
Buffered reference frequency output
Low power with built in power management
Very low standby and “no-signal detected” power consumption
1.7 V CODEC supports 1Vrms output
1.8V digital / 1.7V analog supply ensures low power consumption
2-wire (I2C compatible) control interface
68-pin 8x8mm QFN (Quad Flat No-leads) Package
--- Tempo Semiconductor---
