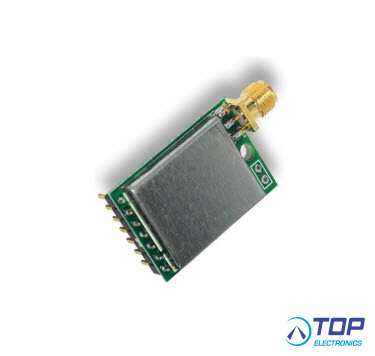

WT801LP, LoRaWAN Compat RF Module + UART Interf.

More information

Stock
In stock
Delivery time
if not in stock: 3 ~ 6 weeks
Manufacturer / supplier
Wireless-Tag Technology
Datasheet
View datasheet
€ 26.95 excl VAT

Product specifications

Wireless-Tag WT801LP

WT801LP LoRaWAN Compatible RF Module with UART interface

WT801LP is a highly integrated low-power and half-duplex RF transceiver module embedding high-speed and low-power MCU, and high-performance RF chip with LORA modulation which is capable of achieving significant longer range than existing RF transceiver of FSK or OOK modulation. WT801LP totally supports LoRaWAN class-A protocol.

This module uses LoRa modulation to improve the sensitivity up to -137dBm, significantly extending the transmission distance under the low power. By LoRaWAN protocols, the start network could solve the problem of collision and low power consumption through the gateway solution.

WT801LP module’s interface voltage is 2.6-3.6 V with consuming only 13 mA at the receiving mode. If there is no packet to transmit, the module consumption is only 1.3uA which is very suitable for a battery-powered system.

Using the WT801LP module in an application minimizes the need or an expensive and time-consuming RF development. Fast responding to market is possible with this pre-qualified module.

Features

> LoRaWAN class-A compatibility
> Global unique 64-bit identifier
> 4 bands and 16 channels support
> Transmission distance > 5000 m
> Frequency 862MHz to 1020MHz
> High sensitivity up to -137dBm
> Maximum transmission power 20dBm
> Low sleep current 1.3uA
> Receiving mode current 13mA
> Super small size 34.5mm*20mm*6mm

Application
> Wireless water/heat/gas meter reading
> Wireless sensor
> Intelligent instrument and meter
> Intelligent lighting control
> Auto data collection
> Remote control and sensing
> Communication in highway and railway
> Smart building and security
> Robot controlPower distribution network monitoring,
> Power system monitoring
> Wireless warehousing, logistics management

-- Wireless-Tag Technologies product --
