Product specifications

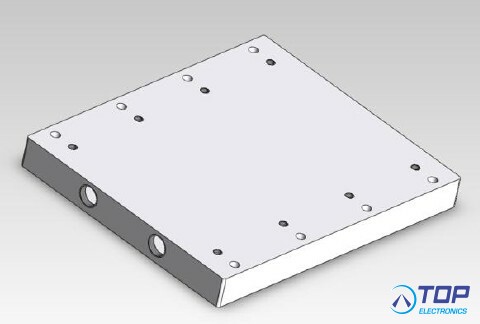

Priatherm PT Zed 1521.
Liquid cold plate consisting of a base and a cover, sealed via brazing technology.
PT Zeds are built starting from an aluminum plate with grooves, made via mechanical processing, through which the cooling fluid flows.
Priatherm uses its own brazing technology to attach an aluminum cover to the base. This seals the grooves, creating a metal joint between the base and the cover.
The result is a single structure with considerable advantages:
• no o-ring is required, as the joint between base and cover is metal;
• great flexibility in designing the grooves, which can be positioned directly under heat sources;
• if made of aluminum, the connectors can be brazed directly onto the plate;
• more compact and higher performing solution compared to an air heat sink
GENERAL FEATURES:
• Length: 150mm
• Width: 210mm
• Height: 18.5mm
• Rth (forced cooling): 10°C/kW @ 5 l/min
• Execution: Aluminium alloy AW6060
• RoHS and REACH compliant
Do you need a heatsink more tailored to your needs?
Please contact us for the possibilities.
