Product specifications

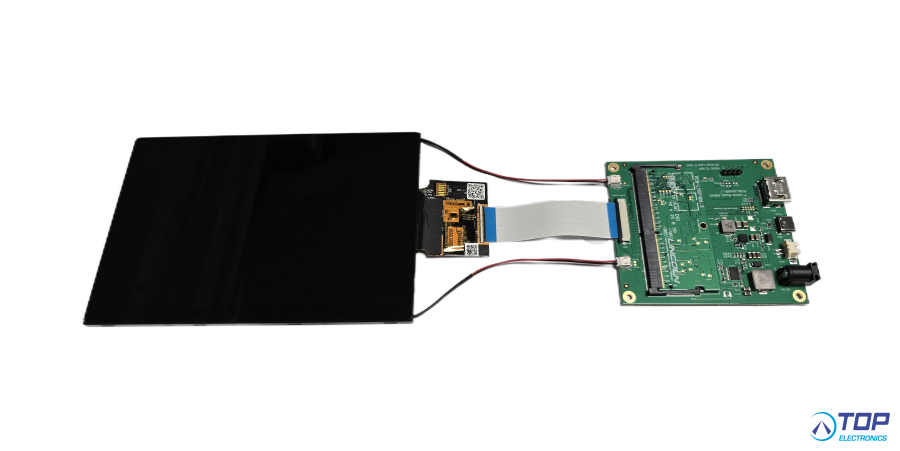

LCD271 7” Ultrabright IPS Development Kit
7" High Bright, Wide Color Gamut, Ultra Contrast FALD with QD TFT LCD Kit
LCD271 requires multiple industry standard interfaces (MIPI, I2C, Backlight Driver, and various regulated voltages) which make it well-suited for cost-efficient and high-performance product integration. However, the required interfaces may not be well supported in all evaluation and product development environments. To ease the initial evaluation and development effort with LCD271, LCDK271 is offered. LCDK271 only requires HDMI for video, USB for touchscreen data, and a single power supply.
Compatibility:

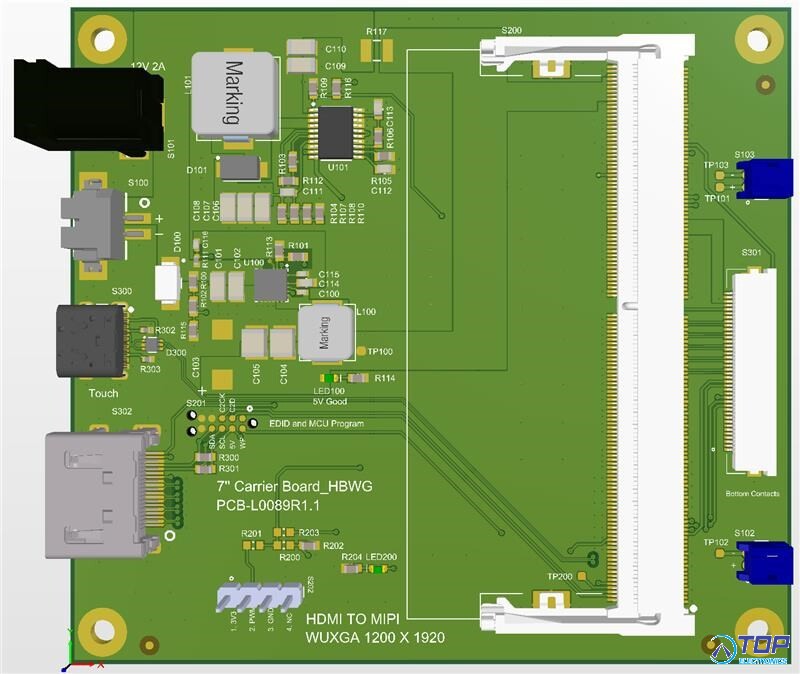

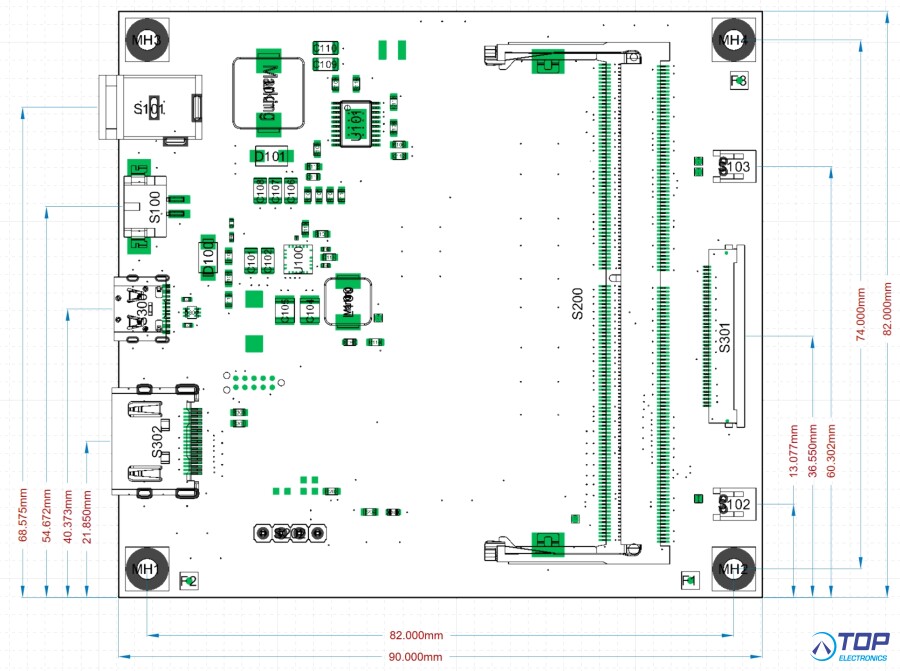

High resolution MIPI panels are most commonly native portrait orientation. The two most common resolutions supported by this module are FHD (1080x1920) and WUXGA (1200x1920). It is expected the host driving HDMI can satisfy the timing requirements as found in the EDID section below. Most Windows OS systems can output the native timing requirements and furthermore are able to rotate and flip the screen. There are dozens of Linux based platforms that are compatible as well. It must be noted that if your application is only designed for landscape mode, the GUI or capable hardware block must buffer and transpose from landscape to portrait, as there is no external buffering capability on either the SODIMM or the Carrier Board.

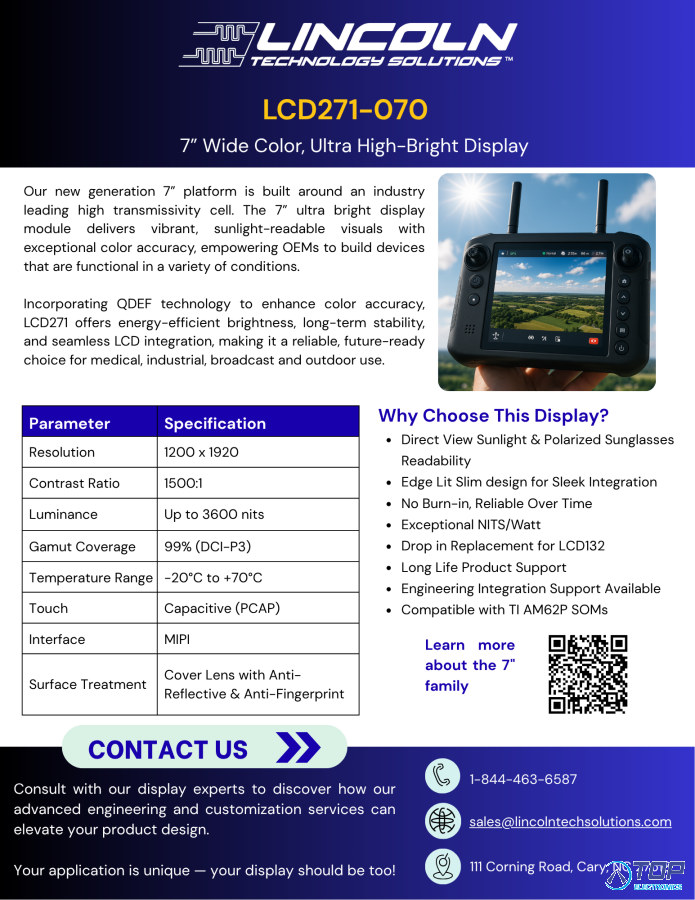

Specifications:
-Size: 7”
- Resolution: 1200x1920
- Interface: HDMI/MicroUSB
- Luminance: 3600nits
- Contrast: 1300:1
- NTSC Color Gamut Ratio: 102%
- PCAP: Yes
- Operating Temperature: -20 to +70C
- Storage Temperature: -30 to +80C
- Backlight: Edgelit
- Lincoln Technology Solutions product -
