Product specifications
LCD185 10.1” Ultrabright IPS Development Kit
10.1" High Bright, Wide Color Gamut with QD TFT LCD HDMI to MIPI/MicroUSB to I2C Kit
LCD185 requires multiple industry standard interfaces (LVDS, I2C, Backlight Driver, and various regulated voltages) which make it well-suited for a cost-efficient and high-performance product integration. However, the required interfaces may not be well supported in all evaluation and product development environments. To ease the initial evaluation and development effort with LCD185, LCDK185 is offered. LCDK185 only requires HDMI for video, USB for touchscreen data, and a single power supply.
Compatibility:

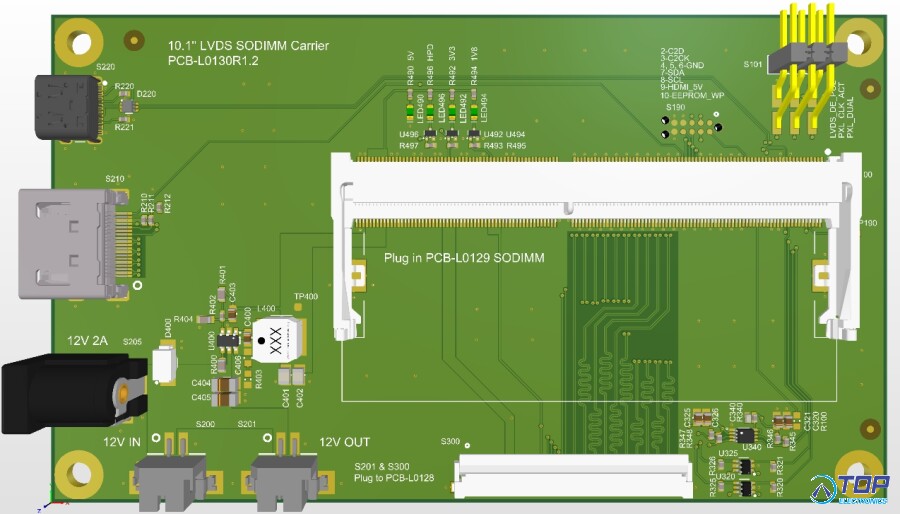

High resolution LVDS panels are most commonly native Landscape orientation. The resolution supported by this module is WUXGA (1920x1200). It is expected the host driving HDMI can satisfy the timing requirements as found in the EDID section below. Most Windows OS systems can output the native timing requirements and furthermore are able to rotate and flip the screen. There are dozens of Linux based platforms that are compatible as well. There is no scaler on PCB-L0129R1.0 to support other input resolutions.
Specifications:
- Size: 10.1”
- Resolution: 1200x1920 pixels
- Interface: HDMI/MicroUSB
- Luminance: 3000nits
- Contrast: 900:1
- NTSC Color Gamut Ratio:110%
- PCAP: Yes
- Operating Temperature: -20 to +70C
- Storage Temperature: -30 to +80C
- Backlight: Edgelit
- Lincoln Technology Solutions product -
