Product specifications

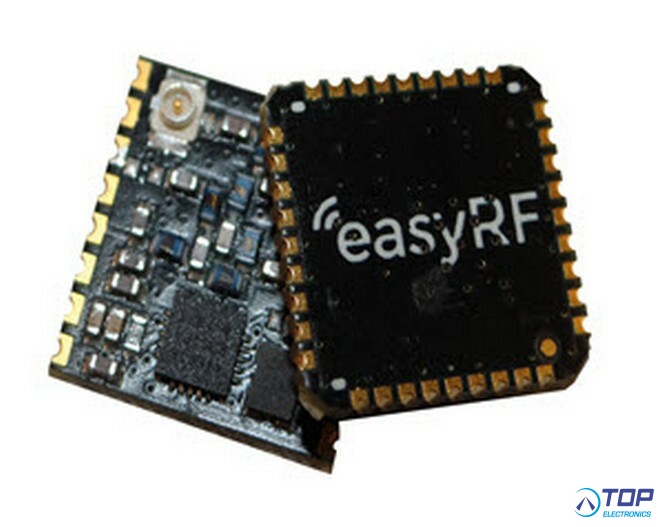

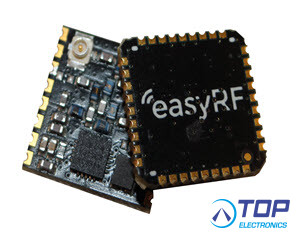

ERF2000
ISM Transceiver for 868 MHz
RF specs
- 868MHz Frequency Range
- 121 dBm Sensitivity
- 13 dBm max Output power range
- Antenna diversity and TR switch control
- Frequency hopping capability
- Digital RSSI
- up to 256kbps Data Rate
- FSK, GFSK, and OOK modulation
- Based on Si4431 from Silicon Labs
Peripherals
- Temperature sensor
- 12-bit A/D converter
- SPI interface
Power
- Power Supply = 1.8 to 3.6 V
- Low battery detector
- Low Power Consumption
- 18.5 mA receive
- 30 mA @ +13 dBm transmit
- Ultra low power shutdown mode
Size
- Size: 16x16mm
Datasheet is available, please contact us fore more information.
