Product specifications
WuT 42009
Interface 20mA > Centronics

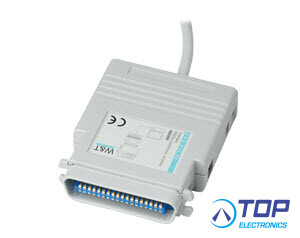

The model 42009 Interface connects parallel printers or plotters to any 20mA data sources. The current loop interface can be operated active or passive, and the mode set individually for each of the two loops.
Interfaces:
-1x 20mA
-25-pin SUB-D socket
-1 x Centronics
-36-pin plug integrated in interface housing
Management and connectivity:
-Convenient startup
-Automatic detection of the RS232 parameters
-Connect Centronics printers to industrial interfaces
-Makes expensive special printers unnecessary
-Interface for all purposes
-Baud rates from 300 to 19200 baud
-Electronic system discretely secured in the adapter housing of the printer cable
-Large safety fifo for slow handshake procedures
-Integrated print data buffer
Power supply:
-External
-via supplied AC adapter
Standards & more
-Conforms to standards both in office and industrial environments:
-High noise resistance for industrial environments
-Low noise emission for residential and business areas
-5 year guarantee
Connections and displays:
- Serial port: 20mA interface, 25-pin SUB-D adapter, incl. 2m connection cable on device
- Parallel port: 36-pin Centronics plug, interface, Can be plugged directly to the printer
- Baud rate: 300 .. 19,200 baud
- Data format: 7, 8 data bits, No, Even, Odd Parity
- Handshake: DTR, XON/XOFF handshake
- Buffer: 2kB (1kB + 1kB overflow buffer)
- Operating modes: active or passive mode of transmission and reception loop
- Supply voltage: Supplied power adapter
- Current consumption: approx. 75mA
Housing and other data:
- Housing: Plastic housing, 75 x 61 x 20mm (L x W x H)
- Enclosure rating: IP20
- Weight: 425g incl. power adapter
- Scope of delivery: Interface 20mA > Centronics, AC adapter for office use
- Wiesemann & Theis product -
