MN03SWBLE, Inpixon Swarm Chirp V3

More information

Stock
522 pcs
Delivery time
please contact us for more information
Part number
MN03SWBLE
Manufacturer / supplier
Inpixon & Nanotron Technologies
Datasheet
View datasheet
€ 89.69 excl VAT
Contact us Technical support Quotation request

Product specifications

Compact, Low-Power, Chirp Radio and Sensor Module

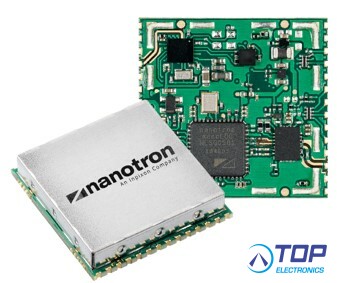

Product photography for the Inpixon Swarm Chirp RTLS sensor module, formerly known as the nanotron swarm bee LE
The Inpixon Swarm Chirp (formerly swarm bee LE) is a 2.4 GHz Chirp Spread Spectrum (CSS) module suitable for a multitude of IoT implementations. Its small form factor, low power consumption and long-range transceiver makes it ideal for wearable IoT devices and discreet product designs and can be used for personnel, equipment, and asset tracking products where indoor and outdoor location sensing is critical.

This miniaturized radio transceiver features embedded accelerometer and temperature sensors and has a configurable transmission power output to further stabilize communication reliability and connection robustness. Far exceeding typical radio and sensor module application ranges, the Inpixon Swarm Chirp is capable of a radio range up to 1,000 meters.

Technical Specifications:

Frequency Range: ISM band 2.4 GHz (2.4 – 2.4835 GHz)
Modulation: Chirp Spread Spectrum (CSS)
Transmission Modes: 80 MHz, 1 Mbps or 250 Kbps (80/1 or 80/4 mode)
TOA Capture Accuracy: < 1 ns (better than 30 cm)
Typical Air Time Per Ranging Cycle: 1.8 ms
RF Output Power: configurable – 12 to +20 dBm
Receive Sensitivity: -89 dBm typ. @80/1 mode, -95 dBm typ. @80/4 mode
RF Interface: 50 Ω RF port (for external antenna)
Host Interface (UART): 115 kbps ~ 1 Mbps
Power Supply: 3.3V – 5.5 V
Max. Supply Voltage Ripple: 20 mVpp
Active Power Consumption1: 230 mA during transmission, 55 mA during receive in 80/1 mode
Power Consumption in Sleep Mode1: 6.5 mA (transceiver disabled, all peripherals on)
Power Consumption in Snooze Mode1: 3 µA (transceiver disabled, all peripherals off, wake-up by timer)
Power Consumption in Nap Mode2: 20 ~ 500 µA (transceiver disabled, all peripherals off, wake-up by interrupt)
Power Consumption in Deep-Sleep Mode1: < 3 µA (device completely disabled)
Operating Temperature Range: -30 ∼ +85 °C
Dimensions: 22 x 23 x 4.4 mm
Weight: 4 g

1 Power consumption in all modes is measured at 20°C, 3.3 V
2 Power consumption in nap mode depends on interrupt sources (GPIO pins or MEMS or both)
