NLSG0501A, Inpixon nanoLOC

More information

Stock
665 pcs
Delivery time
please contact us for more information
Part number
NLSG0501A
Manufacturer / supplier
Inpixon & Nanotron Technologies
Datasheet
View datasheet
Specification 1
Standard Package: 2500pcs T&R
€ 15.86 excl VAT
Contact us Technical support Quotation request

Product specifications

High Performance RF Transceiver for Location Awareness and Robust Wireless Communication

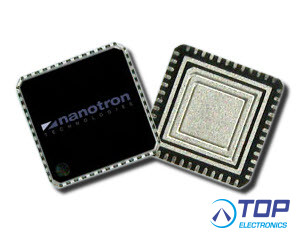

Product photography for the Inpixon nanoLOC Chirp RTLS transceiver chip, formerly knows as the nanotron nanoLOC
The Inpixon nanoLOC transceiver is a low-power, highly integrated mixed signal chip. This 2.4 GHz long range Chirp Spread Spectrum (CSS) transceiver transmits and receives wireless data packets for robust wireless communication, ranging capabilities and RTLS.

Supporting a freely adjustable center frequency with three non-overlapping frequency channels, amongst others, Inpixon nanoLOC enables multiple physically independent networks and improved coexistence with existing 2.4 GHz wireless technologies.

Technical Specifications:
- Typical Range in Mining Tunnel1: 100 – 300 m
- Typical Location Accuracy: 1-3 m
- Supply Voltage: 2.3 to 2.7 V
- Output Power: -33 to 0 dBm
- Data Rates: 125 kbps to 2 Mbps
- Receiver sensitivity (FEC on): up to -97 dBm
- Current consumption TX: 30 mA @ 0 dBm
- Current consumption RX: Starts at 33 mA
- SPI interface: 27 Mbps, agent mode only
- RSSI sensitivity: -95 dBm

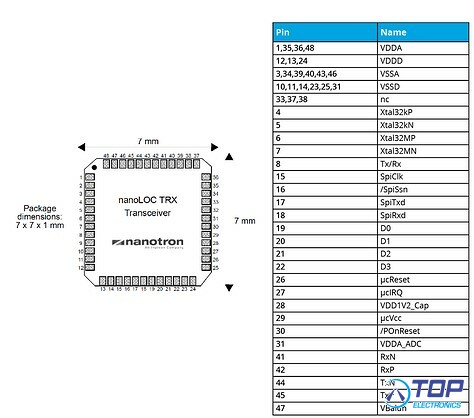

- Dimensions: 7 x 7 x 1 mm
- 1 Depends on topology and antenna. Signal amplified to +20 dBm

-- Inpixon product --
