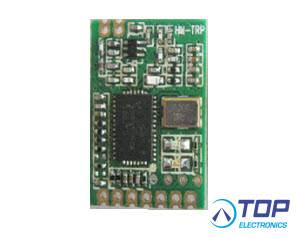

HM-TRP-434S, HM-TRP 100mW Trans.Module 433MHz

More information

Stock
Out of stock
Delivery time
if not in stock: 4 ~ 6 weeks
Manufacturer / supplier
HopeRF
Datasheet
View datasheet
€ 11.51 excl VAT
Contact us Technical support Quotation request

Product specifications

HM-TRP 100mW Trans.Module 433MHz

HM-TRP series is a low cost, high performance transparent FSK transceiver with operating at 433/470/868/915 MHz. It features small size, high output power, high sensitivity, long transmission distance and high communication data rate with auto set up for communication change and data receiving and transmission control. There is UART interface, it is easy to realize the wireless data transmission with only providing the UART data. It is flexible for the users to set the UART baud rate, frequency, output power, data rate, frequency deviation, receiving bandwidth etc parameters. It is your ideal choice for designing wireless data transmission products which can be widely used on wireless data transmission field.

Features
- Low cost, high performance , high reliability
- FSK modulation, 2-way half –duplex communication, strong anti-interfere
- 433/470/868/915MHz ISM band,globally license free.
- Maximal output power100mW(20dBm),output power adjustable between 1-20dBm
- Sensitivity -117dBm
- Supply current for Tx 100mA@20dBm, 40mA@14dBm
- Supply current for Rx 25mA
- Low current sleep mode 1uA
- Standard TTL UART interface, extendable to RS232 or other interface
- Operation frequency can be configured, acceptable for several modules working in different frequency with no disturbance on each other.
- Optional for frequency deviation and receiving ISM bandwidth, users can be modulated by software.
- Easily use, auto exchange on communication & transceiver
- Communication speed 1.2kbps -115.2kbps,can be modulated through software
- Afford ENABLE control signal,user self control work duty cycle
- RSSI function
- With LED indication
- Longer transmission distance,over 1Km in open air
- Small size 16X20X2MM,9 PIN DIP & 9 PIN SMD package,easy for assembly .
- Tuning free
- Accord FCC,ETSI standard

Application
- Remote control, remote measurement system;
- Wireless meter
- Access control
- Identification system
- Data collection
- IT household appliance
- Intelligence household appliance
- Baby monitoring system

- HopeRF Microelectronics product -
