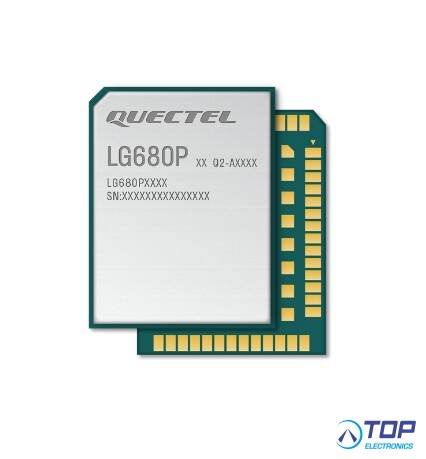

LG680P, High-precision multi-band GNSS module

More information

Stock
Out of stock
Delivery time
if not in stock: 8 ~ 12 weeks
Part number
LG680P
Manufacturer / supplier
Quectel Wireless Solutions
Contact us Technical support Quotation request
Quantity
Unit price
From 25 piece(s)
From 100 piece(s)

Product specifications

LG680P
High-precision multi-band GNSS module

LG680P (03) is a multi-constellation multi-band GNSS module with 1040 tracking channels, which supports concurrent reception of GPS, GLONASS, Galileo, BDS, QZSS and NavIC constellations, as well as multiple SBAS systems (WASS, EGNOS, BDSBAS, MSAS, GAGAN and SDCM).

The built-in professional-grade interference signal detection and elimination algorithms effectively mitigate multiple narrow-band interferences, which significantly improves signal reception performance, particularly in complex electromagnetic environments. In addition, LG680P(03) supports L1, L2 and L5 multi-band RTK algorithm solution, significantly improves the module’s robustness in complex scenarios such as urban environments and deep tree cover, supporting the output of high-precision positioning result. In addition, the module supports Galileo E6, QZSS L6, BDS B2b and L-Band for PPP technology.

The LG680P (03) multi-band GNSS module supports protection-level and other integrity detection information, aiding control decisions in automatic navigation application scenarios. With on-chip storage ECC verification and Secure Boot safe loading mode, the module protects the operating firmware safety. The LG680P(03) accommodates users diverse needs with a choice of interfaces including UART, SPI, I2C and CAN.

With high precision, low power consumption and a high positioning update rate up to 20Hz, the LG680P (03) multi-band GNSS module is an ideal choice for high precision navigation applications, such as intelligent robots, precision agriculture, ADAS, and autonomous driving.

Summery:
- High-precision multi-band GNSS module
- 22mm × 17mm × 2.7mm
- Approx. 2.3g
- Operating temperature: -40°C to +85°C
- Supports GPS + GLONASS + Galileo + BDS + QZSS + NavIC

Key features:
- Concurrent reception of multi-constellation signals: GPS, GLONASS, Galileo, BDS, QZSS, NavIC and SBAS
- Multi-band GNSS signals: L1, L2 and L5
- Galileo E6, QZSS L6, BDS B2b and L-Band for PPP technology
- High positioning update rate up to 20Hz
- Built-in professional-grade NIC anti-jamming unit to suppress multiple narrow-band interferences
- Abundant interfaces: UART, SPI, I2C and CAN
- AGNSS* technology
