Product specifications
WuT 81009

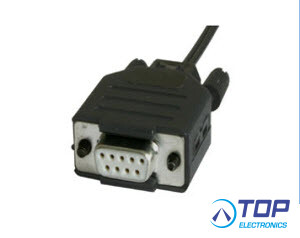

Plastic-Fiber Optic Interface <> RS232 with 9-pin female for PC ports
The model 81009 Interface powers itself from the signal lines of the serial interface and requires no additional external power supply when operated on standard RS232 interfaces.
If however there are supply problems due to low-power interfaces, it is always possible to externally power the interface with up to 9V using its handshake inputs, or to use fiber-optic interfaces having their own power supply (e.g. model 81201).
With model 81029 there is also a 9-pin special version available whose transmission distance is limited to from 0 to 20m, but which only places an approx. 2mA load on the connected RS232 interface. With this version it is also possible to run on lower power RS232 interfaces without the need for an additional voltage source.
Background knowledge: Transmission distances
The limitation with respect to a minimum required fiber optic cable length of 5 meters is only relevant when using the maximum baud rate of 115.200 baud while simultaneously running the interfaces on RS232 ports with low output voltages.
If any of these limiting conditions does not apply, the Interfaces (e.g. for galvanic isolation of serial ports) can also be operated using very short fiber optic cable lengths.
Due to the current-saving construction of model 81029 we recommend in such application cases still using this Interface type, since the connected RS232 ports are only minimally loaded.
Product properties:
Conversion from RS232 to fiber-optic cable
Transmission distance 5 to 80 meters
Easier installed than any copper cable, thanks to patented FOC adapter
100% protection against interfering radiation
No re-configuration of transmission parameters required
Electrical isolation
Lightning protection
Tehnical data:
Connections and displays:
- Serial port: RS232 Interface, 9-pin SUB-D female, ready to connect to a PC
- Fiber-optic cable adapter: socket with automatic interlocking of the fiber-optic cable
- Baud rate: 110..115,200 baud
- Data format: any format
- Supported signals: RxD, TxD
- Maximum distance: typ. 80 meters over fiber optic cable (when operating on RS232 ports with MC1488 driver chips and with handshake lines connected)
- Power supply: In general from the RS232 signals. For low-power versions of the serial port external supplying of the interfaces via handshake inputs with up to 9V DC is possible
- Fiber-optic medium: Duplex plastic optical fiber cable, Dimensions 2.2 x 4.4mm with a fiber diameter of 1mm
- Material: core: PMMA, cladding: PE
- Wavelength: approx. 660nm
Housing and other data:
- Housing: SUB-D adapter housing
- Enclosure rating: IP40
- Weight: approx. 30g
- Ambient temperature: Storage: -40..+70°C, Operation: 0..+50°C
- Scope of delivery: Plastic optical fiber cable <> RS232 interface, 9-pin for PC
- Wiesemann & Theis product -
