Product specifications

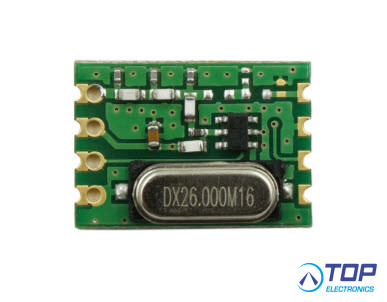

HopeRF RFM119-433S1
FM Transmitter Module, +10dBm 433MHz, SMT Slim Package
The RFM119-433S1 is an ultra-low-cost, fully integrated FSK or OOK transmitter suitable for operation between 310 and 450 MHz. For applications where economy is paramount, theRFM119-433S1 may be used without the requirement for configuration via an MCU. However, in conjunction with a microcontroller the communication link parameters may be re-configured. Including, output power, modulation format and operating channel. The RFM119-433S1 offers integrated radio performance with cost efficiency and is suited for operation in North America FCC part 15.231, FCC part 15.247 DTS and FHSS modes, 15.249, and Europe EN 300 220.
FEATURES
+10 dBm or 0 dBm Configurable output power
Bit rates up to 100 kbps
OOK and FSK modulation.
1.8 to 3.7 V supply range.
Low BOM Fully Integrated Tx
Fractional-N PLL with 1.5 kHz typical step
Frequency agility for FHSS modulation
FCC Part 15.247 DTS Mode compliant
APPLICATIONS
Garage Door Openers
Low-Cost Consumer Electronic Applications
Remote Keyless Entry (RKE)
Remote Control / Security Systems
- HopeRF Microelectronics product -
