Product specifications
TMC4671+TMC-UPS-10A70V-EVAL-KIT
The TMC4671+TMC-UPS-10A70V-EVAL-KIT allows you to explore all functions of the TMC4671.

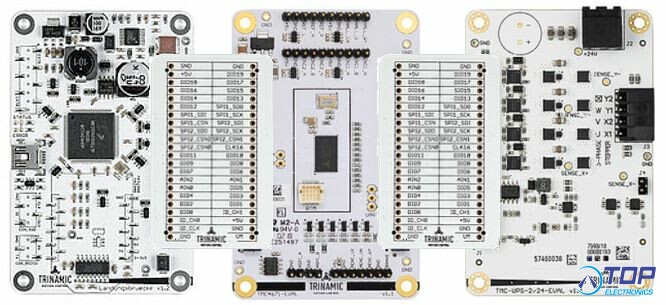

The TMC4671+TMC-UPS-10A70V-EVAL-KIT is a set of one MCU board Landungsbrücke, two Eselsbrücke bridge boards and a TMC-UPS-10A70V-EVAL power stage as well as one TMC4671-EVAL driver board.
It allows for a quick and simple start within only minutes to make your motor turning, while still providing full access to all registers and full functionality and diagnostics.
For diagnosis, all signals between MCU and TMC4671 are accessible with probes on the Eselsbrücke bridge board. To simplify the transfer to your own processor platform the MCU board can be disconnected.
Additionally required is a power supply (max. 46V).
- TRINAMIC Motion Control product -
