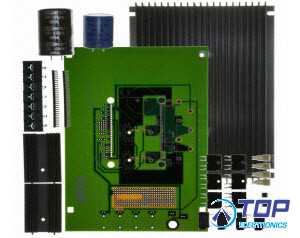

EK56, Evaluation Kit for MSA240KC, MSA260KC

More information

Stock
In stock
Delivery time
if not in stock: 4 ~ 6 weeks
Part number
EK56
Manufacturer / supplier
Apex Microtechnology
Datasheet
View datasheet
€ 451.92 excl VAT

Product specifications

EK56 - Evaluation Kit for MSA240KC and MSA260KC

** This EK does NOT contain the actual amplifier device, so that needs to be ordered separately **

This easy-to-use kit provides a platform for the evaluation of PWM circuits using the MSA240KC/260KC pin out.
With ample bread boarding areas it is flexible enough to analyze a multitude of standard or proprietary circuit configurations. Critical connections for power supply bypassing are pre-wired. Components not usually readily available in engineering labs are provided. External connection to the evaluation kit can be made via the terminal block and banana jacks at the edges of the circuit board.

- APEX Microtechnology product -

Related products

MSA240KC

Pulse Width Modulation 100V, 20A

€ 229.70

MSA260KC

Pulse Width Modulation Amp, 450V, 20A

€ 219.90
