Product specifications
The LM55X is the evaluation product family for the LM961 Bluetooth® Dual Mode module. A great starting point for evaluating Bluetooth® applications. Simplifying the development process and cutting down time to the production phase.
LM assists the developer to create new applications with the LM961 module.
The LM55X product family helps the developer to integrate the LM961 into their hardware designs and test for production. The LM55X

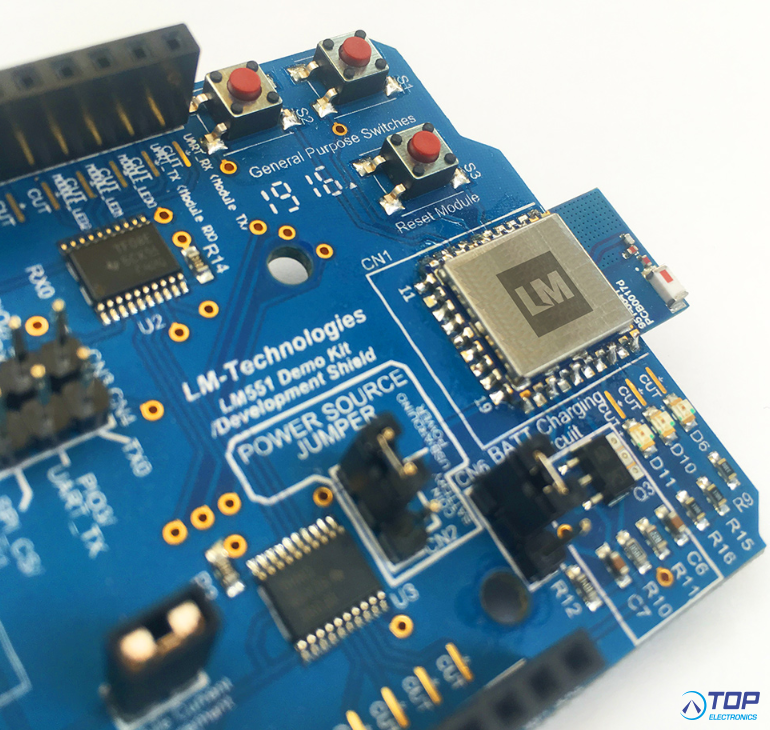

evaluation board enables the developer to evaluate a Bluetooth® Dual Mode application.
The LM55X is USB powered or powered from a coin cell battery when operating the prototype in a “real world” scenario. The LM55X is
Arduino compatible, providing the option of connecting the LM961 to an Arduino Board. The Arduino providing the power supply when
connected.
Available versions:
- LM551-0560 - eval board

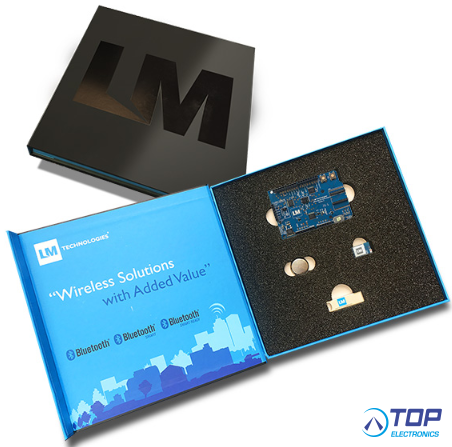

- LM550-0562 - eval board + module + coin cell battery
Features
- Hardware design guidelines
- Manufacturing packs for module reference designs
- Production test and configuration tools
- Pin header socket for easy insertion and removal of LM961 module
- I2C, UART and USB interfaces for breaking out I/O to application-specific
- peripheral devices
- Onboard LEDs and switches
- Pins for current consumption measurements

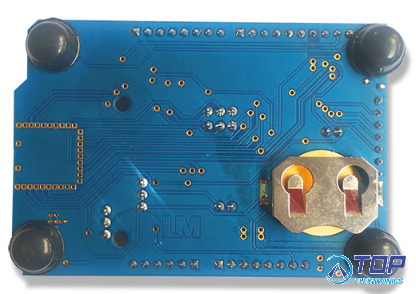

- Onboard coin cell socket
- 3.3V supply voltage regulator included
- 78mm x 54mm x 16mm
- LM Technologies product -
