Product specifications

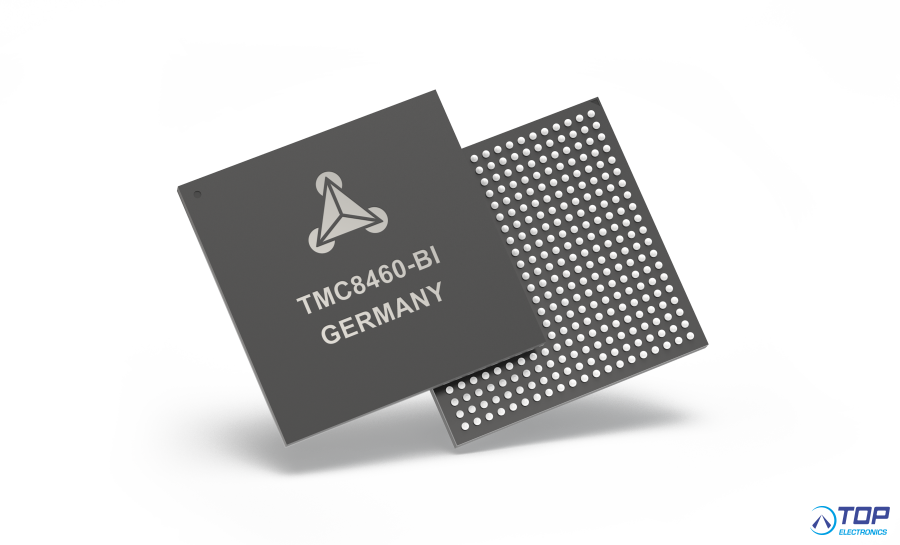

TRINAMIC TMCM-8460-BI
The TMC8460 is an EtherCAT slave controller with multifunction I/O for industrial automation, robotics and other automated equipment applications.
The device is suitable as a step/ direction output and SPI master for example without using an additional microcontroller.
The TMC8460 provides an a/b/n incremental, PWM, SPI and step/direction interface, general purpose IOs, and connects to the EtherCAT(tm) field bus with two MII interfaces.
The device requires 1.2V and 3.3V for logic and IO supply.
Specifications:
- a/b/n incremental: yes
- PWM: yes
- SPI: yes
- Step/Dir: yes
- GPIO: yes
- 2x MII (EtherCAT®): yes
- TRINAMIC Motion Control product -
