Product specifications
KD037WQFSN002

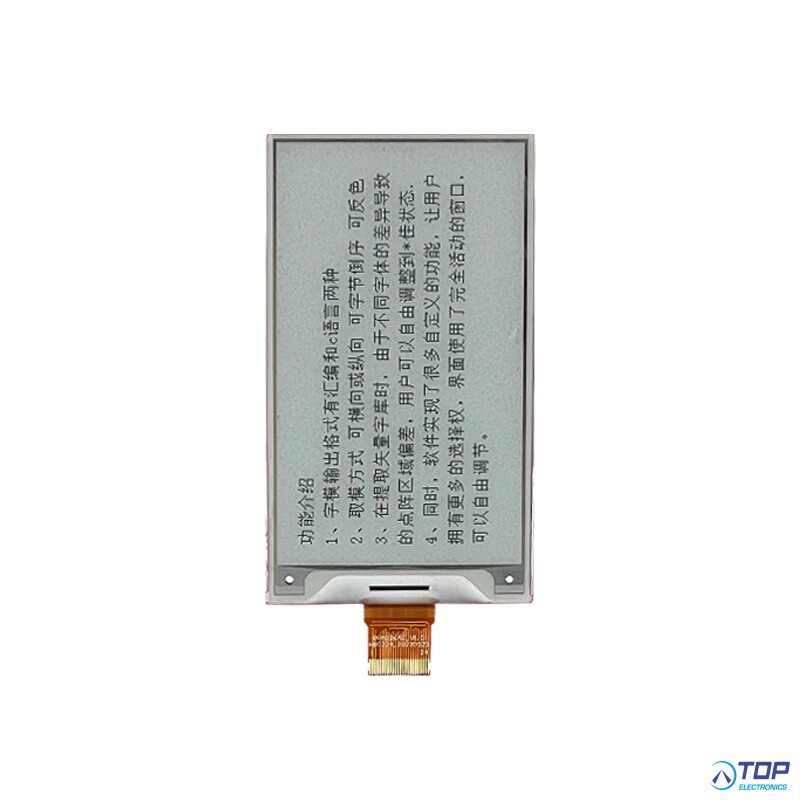

3.7" E-paper display
1. LCD name: 3.7inch Portrait Display 240*416 EPD AD display Full viewing angle dual-colours e-paper
2. Part No.: KD037WQFSN002
3. Other model Part No.: -
4. Size: 3.7inch
5. Display type: EPD B/W
6. Touch type: No Touch
7. Display colors: Black/White
8. Resolution (pixels): 240*416
9. Pixel pitch: 0.196(H) x 0.196(V)
10. Viewing direction: All Viewing angle
11. Controller IC: UC8253
12. Display mode: EPD B/W
13. Overall dimension: 53*92.99*1.14mm (Max）
14. Viewing area:
15. Active Area: 47.04(H) x 81.536(V) mm
16. Luminance: 1200～1500LUX; Distance: 30CM
17. Contrast: 8:1
18. Interface type: 3Wire / 4Wire SPI
19. Pin NO.: 24pin
20. Pin pitch: 0.5mm
21. Connecting type: Plugging type
22. Input voltage: 3V
23. Backlight type and color: No Backlight
24. Backlight: No Backlight
25. LED Life span: 50000h
26. Operating Temperature range: OT: 0~50℃
27. Storage Temperature range: -25～+60℃
28. Certifications of registration: ISO9001 ISO13485 TS16949 RoHS
