Product specifications
KD029QVFSN005

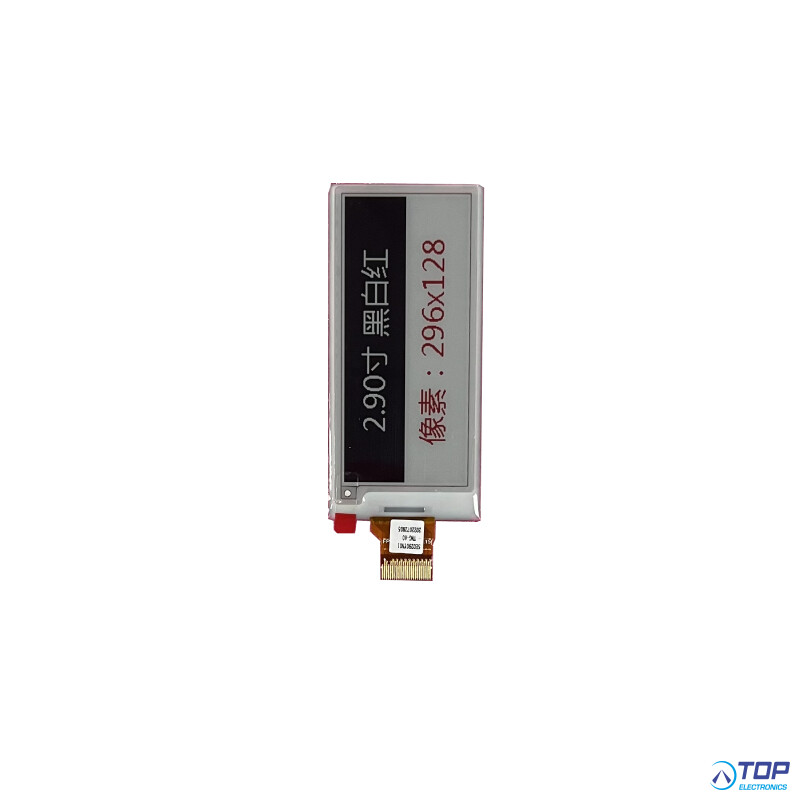

2.9" E-paper display
1. LCD name: 2.9 inch 296*128 SSD1680 SPI SPI interface black white red E-paper display
2. Part No.: KD029QVFSN005
3. Other model Part No.
4. Compatible part No.:
5. Display type: EPD,B / W / R
6. Display colors: B / W / R
7. Resolution (pixels): 296*128
8. Pixel pitch: 0.227(H) x 0.226(V)
9. Viewing direction: Ultra wide viewing angle
10. Controller IC: SSD1680
11. Display mode: EPD,B / W / R
12. Overall size: 36.7(H) x 79.0(V) x 1.20(D)
13. Active Area: 29.056(H) x 66.896(V)
14. Luminance: 1200～1500LUX
15. Contrast:
16. Interface type: 3Wire / 4Wire SPI
17. Pin NO.: 24pins
18. Pin pitch: 0.5mm
19. Connecting type: plugging type
20. Input voltage: 3V
21. Backlight type and color:
22. Backlight:
23.LED Life span: 50000h
24.Operating temperature range: -0 -- 40 °C
25.Storage Temperature range: -25 -- 70°C
26.Compliant: RoHS
27.Certification of registration: ISO9001,ISO13485,IATF16949
