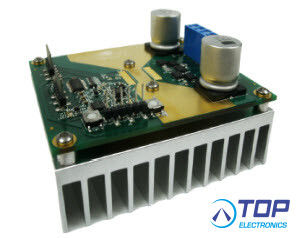

DB73HU, Demo Board Slug Up version SA306AHU

More information

Stock
Out of stock
Delivery time
if not in stock: 12+ weeks
Part number
DB73HU
Manufacturer / supplier
Apex Microtechnology
Datasheet
View datasheet
€ 585.40 excl VAT

Product specifications

DB73HU - Demonstration Board for the SA306AHU

The DB73HU is designed to demonstrate the capabilities of the SA306 3-phase brushless DC (BLDC) motor driver IC.
This fully assembled demonstration allows the user to directly control the speed and direction of the motor. An onboard controller decodes HALL Effect sensor inputs for commutation in either direction and provides four quadrant PWM signals to control the power outputs of the SA306. LEDs provide visual feedback for motor control status and fault conditions. Provisions on the DB73HU allow the user to bypass the onboard control circuit and directly interface with the SA306 brushless motor driver.
The DB73HU demonstrates proper layout techniques for the SA306 high current switching amplifier. The economical construction uses only a two-sided PCB and allows the SA306 to deliver peak power of over 1kW.

THERMAL CONSIDERATIONS
The SA306 is offered in a surface mount package which can deliver peak power of over 1kW. This presents an obvious and significant thermal challenge. The DB73HU offers a compact design which can deliver 17A peak current. The DB- 73HU assembly can dissipate approximately 20W in still air at 25ºC ambient temperature. To use the DB73HU in higher power applications, use of a fan is recommended. Although the SA306 is rated for operation from -25 to +85ºC, the other components on the DB73HU are limited to 0 to 70ºC ambient temperature.

CIRCUIT OPERATION
The DB73HU control circuit receives power via two terminal block connections. The Vs connection supplies power to drive the motor and must be above the under-voltage lockout threshold of the SA306, approximately 8.3V. The control circuit requires 12V for proper operation. A regulator on the DB73HU provides the 5V logic supply for the SA306. There are no special considerations for sequencing the two supplies.

- APEX Microtechnology product -

Related products

SA306AHU

IC switching amplifier 60V,8A,Slug-Up

€ 22.28
