Product specifications

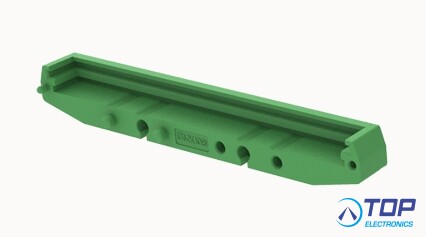

DMK108-11.25 cover
13010000178
Press-drawn side element,use to cover two sides of basic elements.
Dimensions:
- width:114.2mm
- length: 11.25mm
- Height: 15.5mm
PCB data:
- Number of PCB holders: 1
- PCB thickness: 1.6mm
- Installation location: Parallel DIN rail
- PCB Type of installation: Card slot
Material data:
- Color: green
- Material: PA66
- Flammability rating: V0
Environmental data:
- Ambient temperature (assembly): -40℃～ +70℃
- Ambient temperature (operation): -40℃～ +105℃
- Ambient temperature (storage / transport): -40℃～ +70℃
Ordering:
SPQ: 560pcs
MOQ: 560pcs
