LC76G, Compact Multi GNSS Module

More information

Stock
Out of stock
Delivery time
please contact us for more information
Part number
LC76G
Manufacturer / supplier
Quectel Wireless Solutions
Specification 1

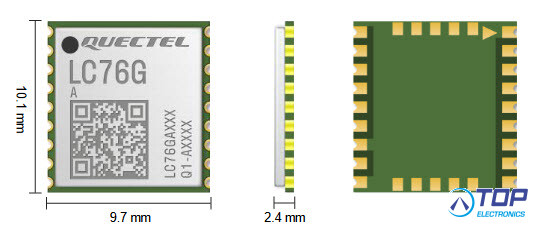

Extremely compact size: 10.1 × 9.7 × 2.5mm
€ 7.33 excl VAT
Contact us Technical support Quotation request
Quantity
Unit price
From 25 pcs€6.96
From 100 pcs€6.82

Product specifications

Quectel LC76G

GPS/Glonass receiver module

The LC76G is designed to be compatible with Quectel L76 and L76-LB modules,
allowing for smooth migration between them.

Compared with single constellation receivers, by enabling multiple GNSS constellations, the LC76G module increases
the number of visible satellites, reduces the time to first fix and improves positioning accuracy, especially when
driving through dense urban canyons.

The integrated LNA that delivers high sensitivity effectuates high accuracy positioning, fast signal tracking and
acquisition and better module performance even in challenging environments.

By combining EASYTM (Embedded Assist System), an advanced AGNSS feature, with GLP* (GNSS Low Power), a low-
power mode, the LC76G module achieves high performance with low power consumption and fully meets the
industrial standards. The EASYTM technology allows the module to calculate and predict orbits automatically by using
the ephemeris data (duration of up to 3 days) stored in the internal RAM. As a result, the LC76G acquires a position
fix quickly, even at lower signal levels with low power consumption. Moreover, with the GLP* technology, the LC76G
can adaptively adjust the on/off time based on the environmental and motion conditions to achieve a balance
between the positioning accuracy and power consumption.

Based on its enhanced performance, the LC76G is ideal for consumer and industrial applications. Extremely low
power consumption makes it a preferred solution for power-sensitive applications, such as portables

Features:
- Multi-GNSS engine for GPS, GLONASS , BDS , Galileo and QZSS,
- ensuring fast and accurate fix in any environment
- Footprint compatible with L76 and L76-LB modules
- Industry-leading sensitivity: -166 dBm during tracking and -147 dBm during acquisition
- Integrated LNA improves sensitivity
- Embedded multi-tone active interference canceller for anti-jamming
- Supported interfaces: UART and I2C
