Product specifications

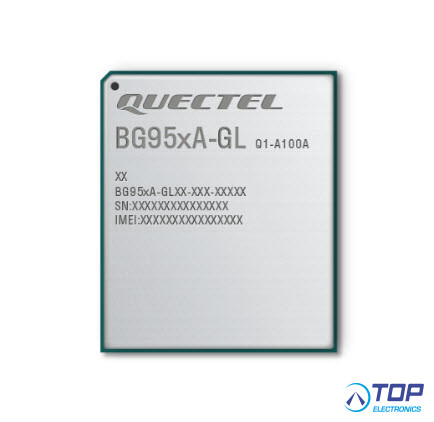

BG955A-GL
Compact LTE Cat M1/NB1/NB2*/GPRSModule
BG95xA-GL is an ultra-compact LPWA module compliant with 3GPP E-UTRA Release 13/14* specification. The module
supports LTE Cat M1/NB1/NB2*/GPRS bands and integrated SIM (iSIM). Besides, it features ultra-low power
consumption implemented by MIPS 5150 processor and integrated RAM and flash, which help reduce current
consumption to rather low levels in various modes, including PSM, eDRX etc. It is further integrated with a GNSS
engine that supports GPS, GLONASS, Galileo, BDS and QZSS systems and a cellular-based positioning engine that
supports Polte and QuecLocator®. BG95xA-GL comes in five variants: BG950A-GL, BG951A-GL, BG952A-GL,
BG953A-GL* and BG955A-GL*.
Key features:
- Extremely compact LTE Cat M1/NB1/NB2*/GPRS module with ultra-low power consumption
- Integrated RAM and flash
- Super slim profile in LGA package
- Support integrated SIM (iSIM)
- Embedded with abundant Internet service protocols
- Support QuecLocator®, Polte and DFOTA
- Support second development of embedded applications,
- ARM Cortex M4 processor, running FreeRTOS
- A rich set of external interfaces (including RF control interfaces) that ensure convenient applications
- Fast time-to-market: reference designs, evaluation tools and timely technical support minimize time and efforts in design and development
- Robust mounting and interfaces
- Quectel Wireless Solutions product -
