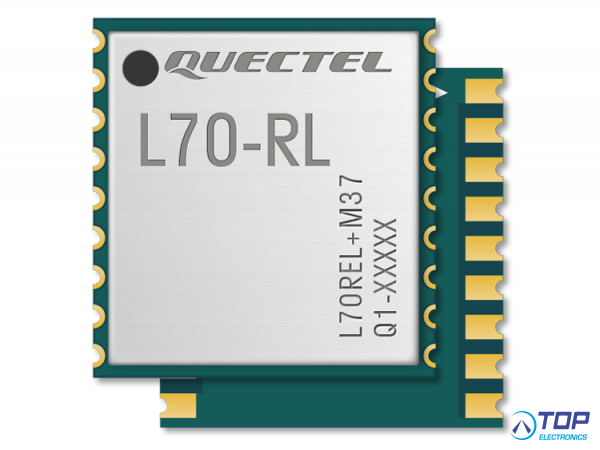

L70-RL, Compact GPS Module, incl LNA - low Consu

More information

Stock
1 pcs
Delivery time
please contact us for more information
Part number
L70-R
Manufacturer / supplier
Quectel Wireless Solutions
Specification 1
Dimensions:10.1×9.7×2.5mm
€ 5.03 excl VAT
Contact us Technical support Quotation request

Product specifications

Quectel L70-RL
Compact GPS Module,ultra Low Consumption (LNA)

L70-RL, a low cost ROM-based GPS module, brings the high performance of MTK positioning engine to industrial applications with its compact profile, ultra low power consumption and fast positioning capability. Designed to be compatible with Quectel L70-R module in the compact and unified form factor, L70-RL additionally provides a built-in LNA for better sensitivity in weak signal areas.

Combining advanced AGPS called EASY™ (Embedded Assist System) technology, L70-RL achieves the highest performance and fully meets the industrial standard. EASY™ technology ensures L70-RL can calculate and predict orbits automatically using the ephemeris data (up to 3 days) stored in internal RAM memory, so L70-RL can fix position quickly even at indoor signal levels with low power consumption.

With its extremely compact design, high precision and improved sensitivity, L70-RL is a perfect solution for a broad range of M2M applications such as portable device, automotive, personal tracking, security and industrial PDA.

Key Benefits
- Extremely compact size: 10.1mm × 9.7mm × 2.5mm
- Cost-efficient ROM-based version
- Ultra low power consumption in tracking mode: 18mA
- Support EASY™, an advanced AGPS technology without the demand of external memory
- Built-in LNA for better sensitivity
- High sensitivity: 167dBm@Tracking, -149dBm@Acquisition
- 66 acquisition channels, 22 tracking channels
- Support QZSS
- Balloon mode, for high altitude up to 80km
- PPS VS. NMEA can be used for time service
- Great anti-jamming performance due to multi-tone active interference canceller
