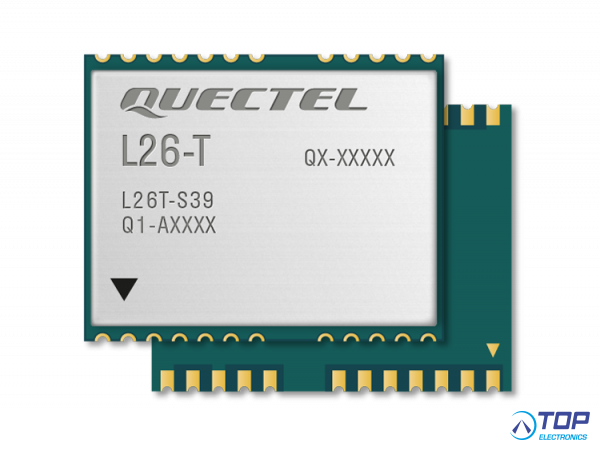

L26-T, Compact GNSS Timing module

More information

Stock
Out of stock
Delivery time
please contact us for more information
Part number
L26-T
Manufacturer / supplier
Quectel Wireless Solutions
€ 19.06 excl VAT
Contact us Technical support Quotation request

Product specifications

L26-T is an ultra-compact, single-band multi-constellation module featuring high precision timing and standard precision positioning. It is designed and manufactured according to the IATF 16949: 2016 standard.

Designed for navigation applications, L26-T can receive and track GPS, GLONASS, Galileo, BDS, and QZSS signals, output multi-GNSS raw data, and use SBAS to enhance accuracy and reliability. The built-in LNA ensures better performance even in harsh environments such as dense urban canyons.

For high-precision timing applications, the module can synchronize with the Coordinated Universal Time (UTC) at a nanosecond resolution. This outstanding timing performance is crucial to a variety of applications demanding highaccuracy time and frequency stability.

L26-T also leverages AGNSS data, resulting in a significantly reduced Time to First Fix (TTFF). The AGNSS feature enables high sensitivity acquisition even on the module’s first start-up, when precise location, time, and frequency are still unknown.

For battery-powered applications, the module offers power saving modes to reduce power consumption.

The superb performance of L26-T makes it an ideal solution for base stations, as well as for automotive and industrial applications.

Summary:
● GNSS module
● 16.0mm × 12.2mm × 2.3mm
● 0.9g
● GPS, GLONASS, BDS, Galileo, and QZSS
● Operating temperature of -40°C to +85°C

Key Features:
● Supports AGNSS
● Built-in LNA
● Timing function
● Supports multi-GNSS raw data function
● Multi-GNSS engine for GPS, GLONASS, Galileo, BDS, and QZSS
● Reception of SBAS broadcast signals
