Product specifications

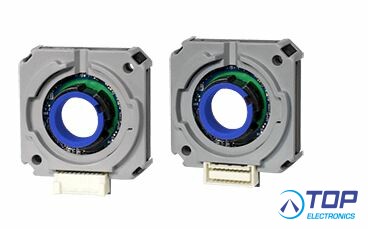

Same Sky - AMT333D-V (Line Driver, Axial Orientation)

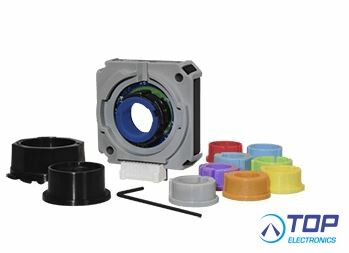

The AMT33-V all-in-one incremental encoder kit offers up to 2,464 configurations in one package. The kit supports 9 shaft sizes ranging from 9 mm to 15.87 mm (5/8 in) and includes three simple mounting tools.
Coupled with the ability to set a range of parameters via Same Sky's AMT Viewpoint GUI, the AMT33-V kit provides engineers with a flexible platform in the development process and purchasing managers the ability to greatly reduce SKU count in production.
FEATURES
- 2,464 encoders in one package
- 22 programmable resolutions up to 4096 PPR
- 9 different shaft sizes from 9 mm to 15.87 mm
- Multiple mounting options
- High accuracy
- Resilient to dust, dirt and oil
- Low power consumption
- Simple assembly
- -40 to +125°C temperature range
Specifications
- Input Voltage 4.5 ~ 5.5 Vdc
- Operating Temp. -40 ~ 125°C
- Max. speed 2500/4000/ 8000 RPM
- Same Sky product -
