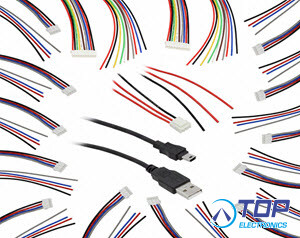

TMCM-6214-CABLE, Cableloom for TMCM-6214

More information

Stock
22 pcs
Delivery time
please contact us for more information
Part number
TMCM-3212-Cable
Manufacturer / supplier
Trinamic Motion Control
€ 18.53 excl VAT
Contact us Technical support Quotation request

Product specifications

TMCM-6214-CABLE

Cableloom for TMCM-6214 stepper motor controller/driver board
Contains 8 types of cables:
#1 1x cable loom for power supply connector (cable length 200mm, 2pin JST VH connector at one end, open wires at the other end)
#2 2x cable loom for STO connectors (cable length 200mm, 2pin JST PH connector at one end, open wires at the other end)
#3 3x cable loom for RS485, RS232 and CAN connector (cable length 200mm, 3pin JST PH connector at one end, open wires at the other end)
#4 6x cable loom for motor connectors (cable length 200mm, 4pin JST PH connector at one end, open wires at the other end)
#5 6x cable loom for stop switch connectors (cable length 200mm, 4pin JST PH connector at one end, open wires at the other end)
#6 3x cable loom for encoder connectors (cable length 200mm, 5pin JST PH connector at one end, open wires at the other end)
#7 2x cable loom for general purpose input/output connectors (cable length 200mm, 10pin JST PH connector at one end, open wires at the other end)
#8 1x USB 2.0 A male to USB-C male cable

- TRINAMIC Motion Control product -
