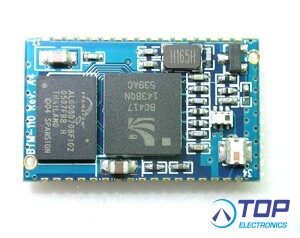

LM071 - Bluetooth Class 2 Module
The LM071 Bluetooth Class 2 Module is a an integrated module which runs LM’s own tried and tested BT2.1 EDR or BT2.0 EDR SPP Stack Firmware.
The LM071 Bluetooth Class 2 Module comes with SPP Stack but can also work with a range of Bluetooth profiles such as SPP, OBEX, HID, DUN etc. It supports 3.0v to 3.6v input and has a footprint of 25 mm x 14.5 mm x 2.2 mm.
The Bluetooth Class 2 Module is designed to provide excellent performance with minimum power consumption and is targeted at the competitive edge against it competitors, it can also be offered as a HCI mode module due to its low cost.
LM071 Bluetooth Class 2 Module Applications
The LM071 Bluetooth Class 2 Module is offered with our free Design In service that allows us to show your team several antenna design options as well as integration to enable the LM072 firmware commands to work with your own products.
If your company has used an integrated module with antenna and is now looking to save cost, our antenna design in service can help reduce your Bluetooth module costs.
Features
Interoperable with PDAs, Phones, PCs and Laptops
BT2.0 and BT2.1 SPP firmware available. HCI Mode firmware also available
Small Size 25 mm x 14.5 mm x 2.2 mm
Lead free RoHS compliant
802.11 Coexistence
AT Command Set provided for module configuration
External Antenna
Class 2 Radio with 25 m range in open space
Benefits
Excellent solution to integrate wireless connectivity to a product for short range connectivity
Small footprint means less PCB area
Low Power
Robust Design
No Host Stack required
Customized SPP firmware available, since LM Technologies Ltd does in-house firmware development
Extensive Technical Support available
Support for encryption data and authentication
Low Cost Solution
