Product specifications
LM910 Bluetooth® v4.0 Dual Mode Module
Host Controller Interface (HCI) via USB Interface

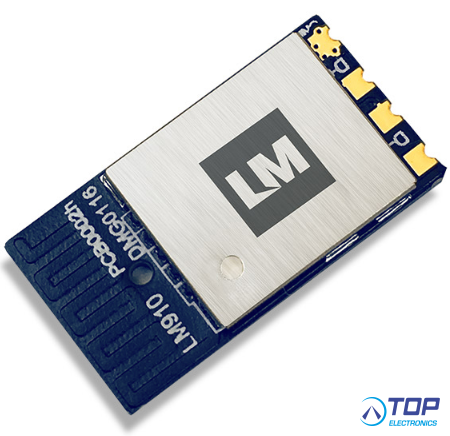

The LM910 Bluetooth® v4.0 Dual Mode Module is a small, simple and highly compatible solution. A plug and play module, compatible with Linux, macOS and Windows XP to Windows 10 platforms. This allows your embedded system to wirelessly communicate with other nearby Bluetooth® and Bluetooth® low energy enabled devices (such as the iPhone and Android devices), providing a low energy connection and a high quality data stream.
The LM910 has many possible uses (e.g. within a Beacon and a data logger), it's typically used in industries such as EPOS, M2M and automotive, making it ideal for developing voice and data applications.
The module has a Host Controller Interface (HCI) for a simple connection via USB to a host computer or MCU.
The LM910 is designed with a PCB antenna for a cost effective solution, providing a high antenna gain. It's SMT side and bottom pads allow for easy integration into your embedded system, simplifying the production and manufacturing phase.
Features:
- Bluetooth® v4.0 wireless technology
- < 35mA Current Consumption (Continuous Tx mode)
- PCB Antenna
- 10 dBm (Bluetooth® v2.1 + EDR) and 9 dBm (Bluetooth® v4.0) Tx Output Power
- -85 dBm (Bluetooth® 2.1 +EDR) and -90 dBm (Bluetooth® v4.0) Rx Sensitivity
- USB 2.0 (Full Speed) for data and power source
- Host Controller Interface (HCI)
- Plug and Play (OSX, Linux and Windows XP to Windows 10 compatible)
- Voice and Data Application support (including VoIP over Bluetooth®)
- Stereo Audio supported

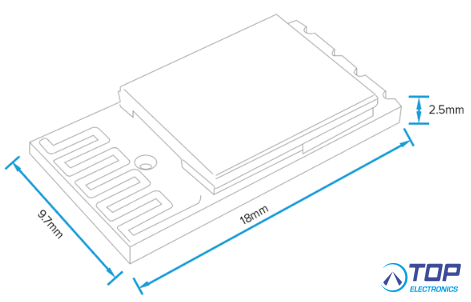

- 18mm x 9.7mm X 2.5mm

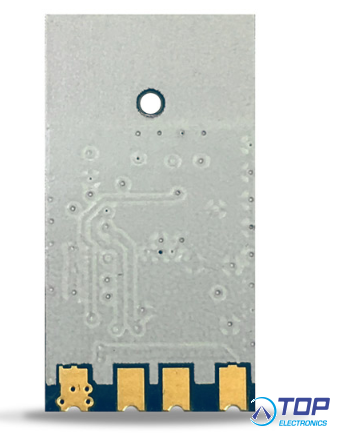

- SMT Side and Bottom Pads for easy production
- IC, FCC, CE / RED Directive and SIG Certified Solution
- RoHS, REACH and WEEE Compliant Solution
Available versions:
PCB Antenna Version
LM910-0630: 1 x LM910 SMT Plug & Play PCB Antenna Module - Tray
LM910-0631: 1 x LM910 SMT Plug & Play PCB Antenna Module - Tape & Reel (MOQ=1500pcs)
IPEX Antenna Version
LM910-0627: Tray
LM910-0628: Tape & Reel (MOQ=1500pcs)
- LM Technologies product -
