Product specifications
Wireless-Tag WT52832-S2

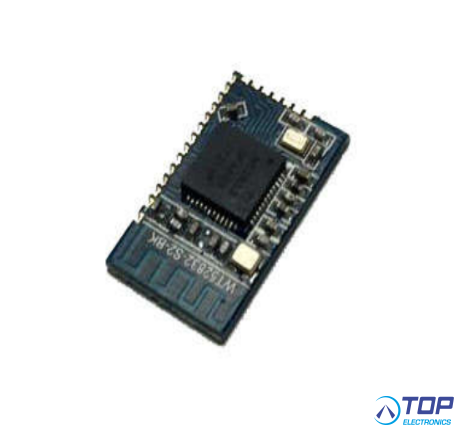

WT52832-S2 is a high performance ,low power radio transmit and receive system module use Nordic BLE nRF52832 as the controller chips. It has the smallest volume package in the industry, the size is 18.7*11.1*2.0, suitable for most applications which pay more attention to the size. The module has hardware support on-chip for Bluetooth 5 that includes high throughput and advertising extension, supports low energy Bluetooth S132 SoftDevice, a Bluetooth 5 pre-qualified protocol stack.
Features：
- Operating temperature: -25°C ~75°C, typical 25°C
- CPU: nRF52832-QFAA (ARM Cortex™-M4F 32 bit processor)
- Memory: 512KB flash + 64KB RAM memory
- Transparent transmission (Bridged method) easy to use and fast, no Bluetooth protocol stack development experience can use too.
- The user interface uses a standard UART (TTL) Interface, bidirectional data read, easy to operate
- Supports serial AT commands, the user can modify the basic parameters like the serial port baud rate, name, MAC address of the module, etc.
- Serial data packet length, single data packet can support data length up to 200byte；
- Serial hardware enable control, low-power control applications
- Operating distance: 0~45m，class II level
- Support System: IOS & Android applicaton
- Supply voltage:3.3V
- Module comes with PCB antenna
- Size: 18.7*11.1*2.0mm
- Support NFC™-A tag
-- Wireless-Tag Technologies product --
