Product specifications
ASUS TINKER EDGE R//SBC MOTHERMOARD
90ME00M0-M0EAY0

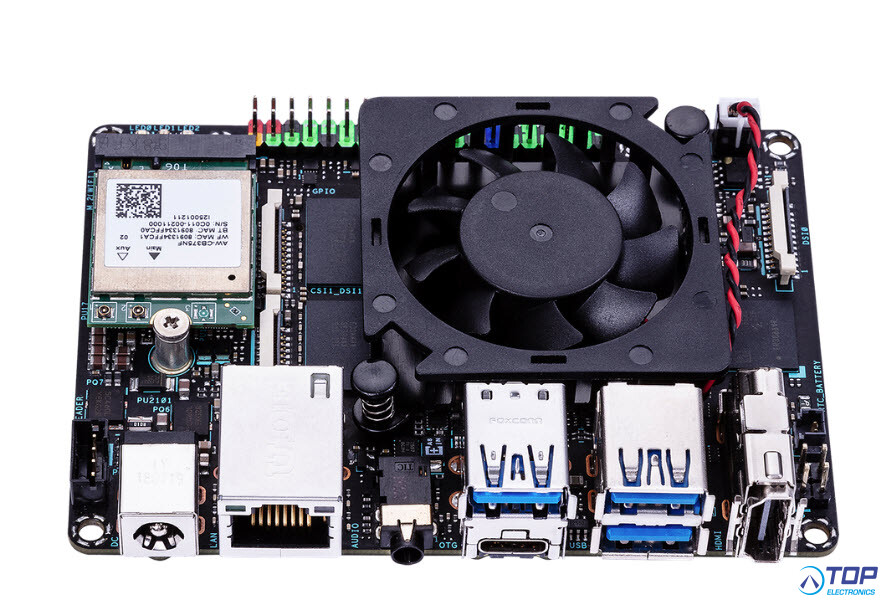

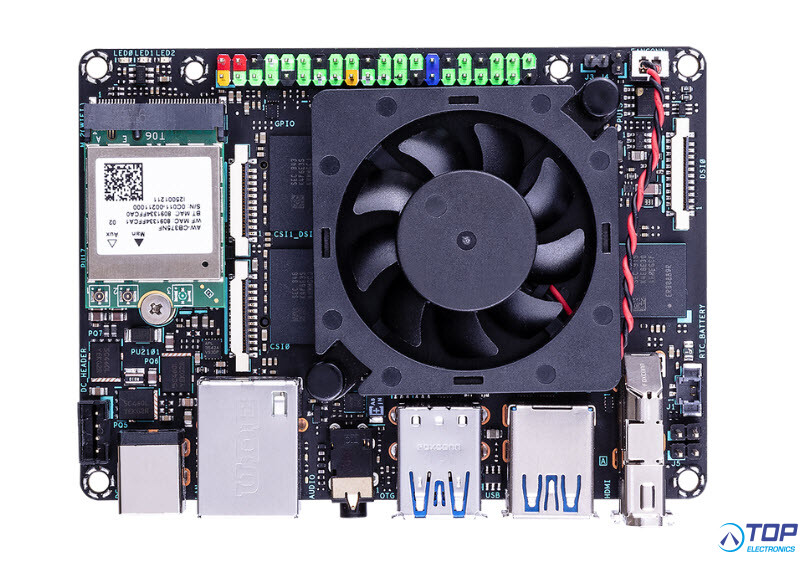

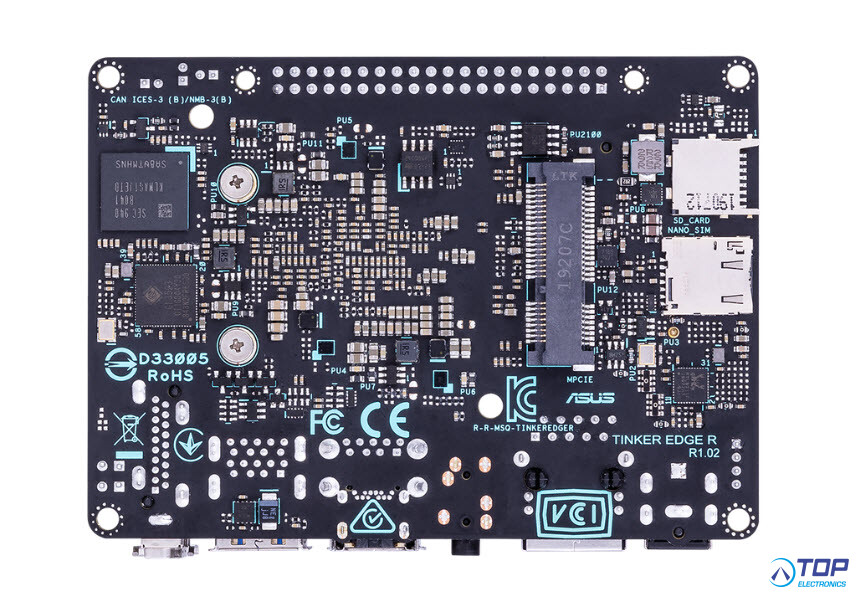

Tinker Edge R
Single-board computer for AI applications, with Arm® big.LITTLE™ technology and Rockchip NPU, easy for Machine-Learning deployment.
Arm® big.LITTLE™ A72+A53 Hexa-core SoC
Machine-Learning capability with Rockchip NPU
Multiple MIPI-CSI & DSI / HDMI / Type-C (DP)
40-pin GPIOs & mPCIe for multiple expansions
12V~19V DC-in offers stable power delivery
ULTIMATE PERFORMANCE FOR EDGE DEVICE
AI accelerator (NPU)
ASUS Tinker Edge R is an Single Board Computer (SBC) specially designed for AI applications. It uses Rockchip NPU, a Machine Learning (ML) accelerator that speeds up processing efficiency, lowers power demands and makes it easier to build connected devices and intelligent applications. With this integrated Machine Learning (ML) accelerator, the Tinker Edge R is capable of performing 3 tera-operations per second (TOPS), using low power consumption. And it's optimized for Neural Network (NN) architecture, which means Tinker Edge R can support multiple Machine Learning (ML) frameworks and let lots common Machine Learning (ML) models can be easily compiled and run on the Tinker Edge R.
Technical specifications:
SoC: Rockchip RK3399Pro
CPU: Dual-core ARM® Cortex®-A72 @ 1.8 GHz
Quad-core ARM® Cortex®-A53 @ 1.4 GHz
GPU: ARM® Mali™-T860 MP4 GPU @ 800 MHz
NN processor: Rockchip NPU
Display: 1 x HDMI™ with CEC hardware ready
1 x USB Type-C® (DP)
1 x 22-pin MIPI DSI (4 lane)
Memory Size: Dual-CH LPDDR4 4GB (SYSTEM)
LPDDR3 2GB (NPU)
Storage: 16GB eMMC
Micro SD(TF) card slot (push/pull)
Connectivity: 1 x RTL8211F-CG GbE LAN
1 x M.2 802.11 a/b/g/n/ac wireless & Bluetooth 5.0 (2T2R)
USB: 3 x USB 3.2 Gen1 Type-A
1 x USB 3.2 Gen1 Type-C OTG
Audio: 1 x 3.5mm audio jack (with Mic & plug-in detection)
1 x S/PDIF TX pin
1 x PCM/I2S pins
Camera Interface: 1 x 22-pin MIPI CSI-2 (4 lane)
1 x 22-pin MIPI CSI-2/DSI (4 lane = 3 MIPI interface, 1st CSI, 2nd DSI, and 3rd is CSI/DSI.
Expansions: 1 x Mini PCIe slot (Full-Length, nano-SIM socket, for 4G/LTE)
Power Connector
(up to 65W): 1 x 12~19V DC Power Input Jack (5.5/2.5mm)
1 x 12~19V 4-pin DC Power Input Header
OS Support: Debian 9/ Android 9
Dimension: Pico-ITX, 3.9 inch x 2.8 inch (100 × 72 mm)
Environment: Operation temperature: 0℃ ~ 50℃
Non operation temperature: -40℃ ~ 80℃
Non operation humidity: 0% ~ 85% (Non condensing)
EAN/UPC;
4718017593212 / 192876593219
