Product specifications
ASUS TINKER BOARD S R2.0/A/2G/16G
90ME03H1-M0EAY0

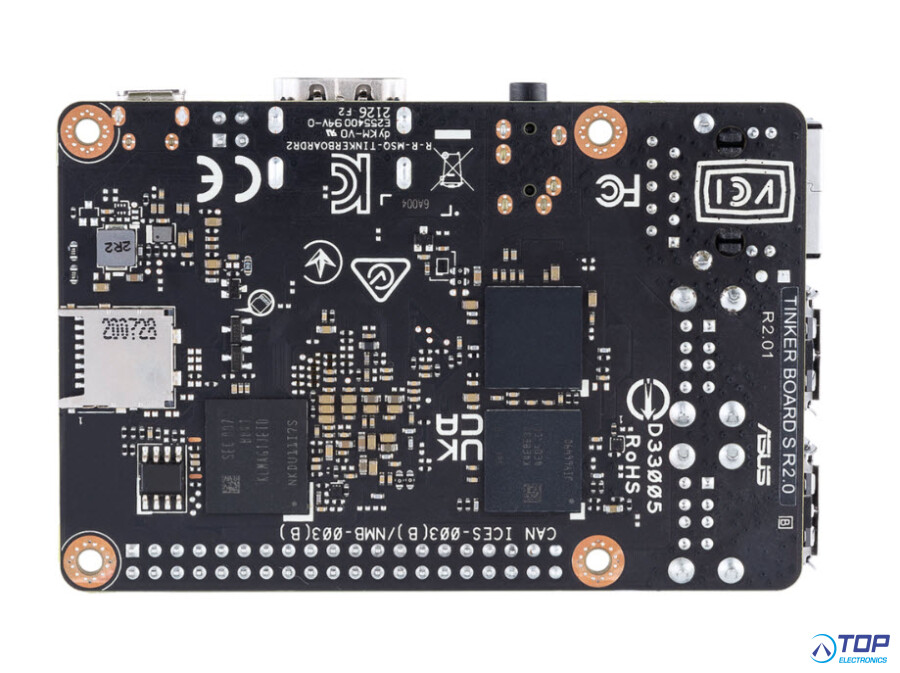

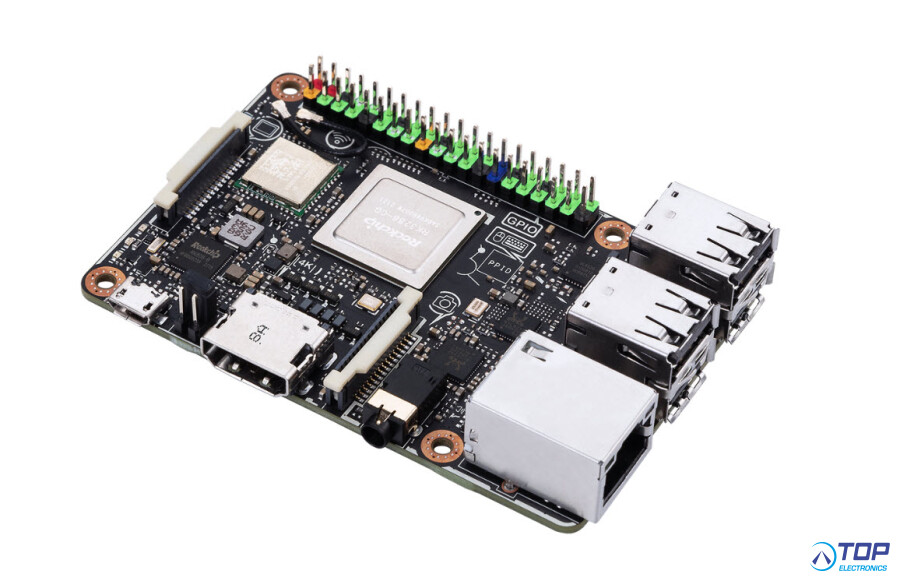

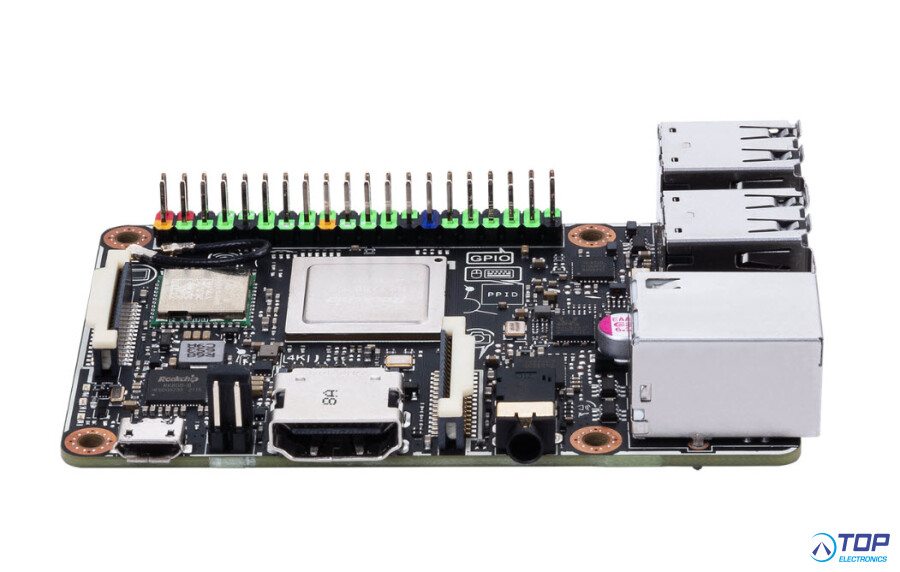

Tinker Board S R2.0
ARM-based SBC with extended and better compatibility
The new and improved Tinker Board S R2.0 is a single board computer (SBC) that offers increased durability, better stability, and an overall improved user experience for DIYers and hobbyists everywhere.
Top notch performance
With its powerful and modern quad-core ARM-based processor - the RK3288-CG.W - the Tinker Board S R2.0 series offers significantly improved performance compared to other popular SBC boards. The Tinker Board S R2.0 is powered by an ARM-based Mali™-T764 GPU. The Tinker Board S R2.0's GPU and fixed-function processors enable a wide range of applications, including high-quality media playback, gaming, computer vision, gesture recognition, image stabilization and processing, as well as computer-assisted photography and more.
* HD & The playback of UHD videos with 30 fps on the Tinker Board S R2.0 is currently only possible via the included media player. Third-party video players and applications may not provide hardware acceleration, resulting in limited or unstable playback performance.
Technical specifications
Processor:
- Processor manufacturer: Rockchip
- Processor: Rockchip RK3288
- Number of processor cores: 4
Storage:
- RAM memory maximum: 2 GB
- Internal memory type: DDR3 SDRAM
- Memory Channels: Dual-channel
- eMMC Capacity: 16GB
- Compatible memory cards: MicroSD (TransFlash)
- connections and interfaces
- WiFi: Yes
- Built-in Ethernet port: Yes
- USB Version: 2.0
- Number of USB ports: 4
- WLAN standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n)
- Ethernet interface type: Gigabit Ethernet
- Audio connector type: 3.5mm
- bluetooth: yes
- Bluetooth version: 4.2+EDR
- S/PDIF Out: Yes
- Number of Ethernet LAN ports (RJ-45): 1
- Number of HDMI ports: 1
- UART: Yes
- GPIO Interface: Yes
- I2C Interface: Yes
- MPI DSI Interface: Yes
- MPI CSI Interface: Yes
- Built-in LAN: Yes
- SPI Interface: Yes
- I2S Interface: Yes
- PCM Interface: Yes
Weight and dimensions:
Height: 85.5mm
Weight: 55g
Width: 54mm
operating conditions:
Operating Temperature: 0-60℃
Storage temperature range: -40 – 85 °C
Characteristics:
Multi-Volt Inputs/Outputs: 3.3.5V
EAN/UPC;
4711081466024 / 195553466028
