Product specifications
ASUS TINKER BOARD 2S/4G/16G//SBC MOTHERBOARD
90ME01P1-M0EAY0

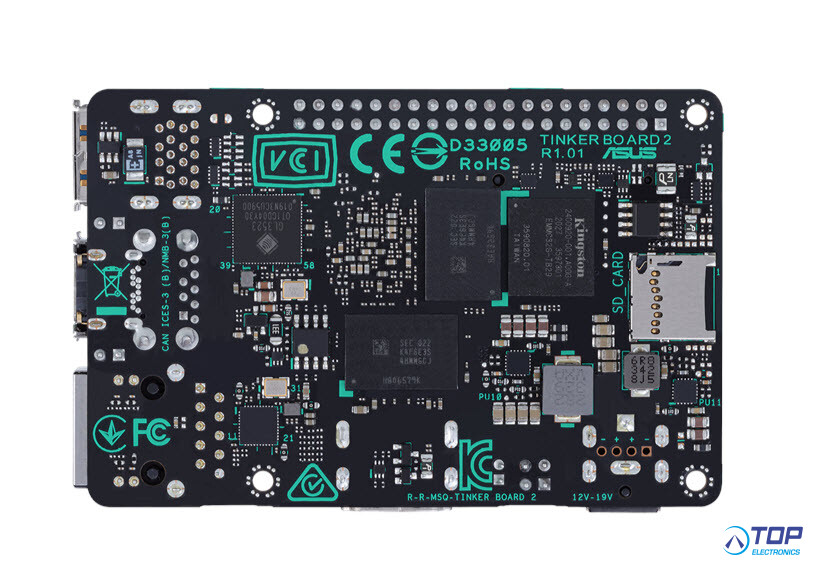

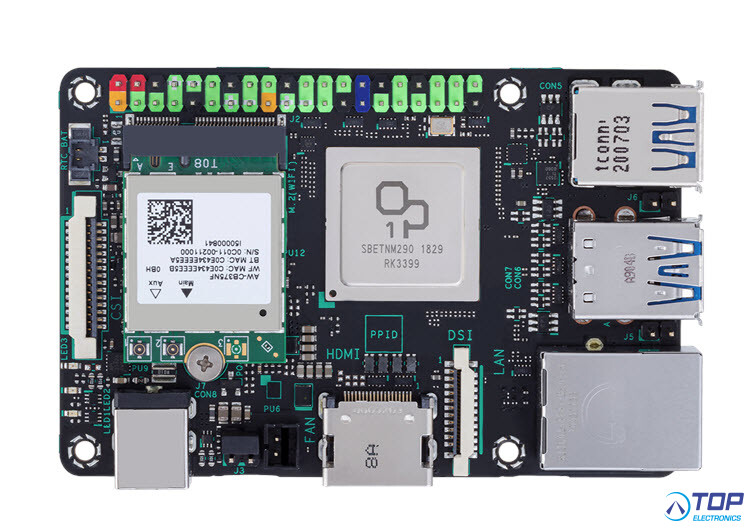

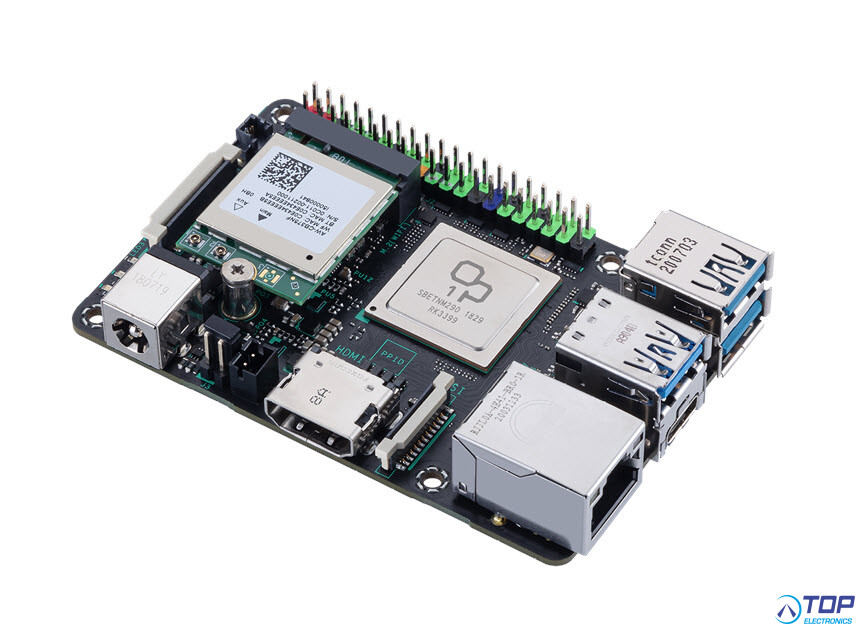

Tinker Board 2S
An Arm-based Single Board Computer (SBC), uses Arm big.LITTLE™ technology's 64-bits processor, offers enhanced computing performance with low power consumption.
Outstanding performance for IoT devices: Powered by 6-core Rockchip RK3399 system on a chip (SoC) with the new 64-bit Armv8 architecture, plus multi-core Mali-T860.
Easy setup tool: Intuitive software for performance tweaking, with simple three-step initial configuration.
Pro-grade admin: ASUS IoT Cloud Console for data management and analysis, plus support for firmware over-the-air (FOTA) roll-out.
Android 10 support: Benefit from better 3D computing performance, support for the Android Neural Networks API 1.2 and Adiantum encryption with 5X-better efficiency.
ULTIMATE PERFORMANCE FOR IOT DEVICES
Enhanced CPU performance
Powered by Arm® 6-core system on a chip (SoC), with the new 64-bit Armv8 architecture — the Rockchip RK3399 — Tinker Board 2S offers significantly improved performance versus compared to other popular SBC boards. It also features Arm big.LITTLE technology, which is a heterogeneous processing architecture that pairs two very different processors together in a single SoC. The big.LITTLE software automates task allocation, ensuring the right CPU core for each process. The upshot is that Tinker Board 2S delivers up to nearly twice the performance of the original Tinker Board, and is significantly faster than many competing SBCs.
Technical specifications;
SoC: Rockchip RK3399
CPU: Dual-core Arm® Cortex®-A72 @ 2.0 GHz
Quad-core Arm® Cortex®-A53 @ 1.5 GHz
GPU: Arm® Mali™-T860 MP4 GPU @ 800 MHz
Display: 1 x HDMI™ with CEC hardware ready
1 x USB Type-C® (DP Alt Mode)
1 x 22-pin MIPI DSI (4 lane)
Memory Size: Dual-CH LPDDR4 2GB / 4GB
Storage: 16GB eMMC
Micro SD(TF) card slot (push/pull)
Connectivity: 1 x RTL8211F-CG GbE LAN
1 x M.2 - 802.11 a/b/g/n/ac wireless & BT 5.0 (2T2R)
Audio: 1 x HDMI™ audio output
1 x S/PDIF TX pin (from GPIO)
1 x PCM/I2S pins (from GPIO)
USB: 3 x USB 3.2 Gen1 Type-A ports
1 x USB 3.2 Gen1 Type-C® OTG port
Camera Interface: 1 x 15-pin MIPI CSI-2 (2 lane)
Power Connector
(up to 45W): 1 x 12~19V DC Power Input Jack (5.5/2.5 mm)
OS Support: Debian 9 / Android 10
Dimension: 3.37 inch x 2.125 inch (85 x 56 mm)
Environment: Operation temperature: 0℃ ~ 60℃
Non operation temperature: -40℃ ~ 85℃
Non operation humidity: 0% ~ 85% (Non condensing)
EAN/UPC;
4711081323426 / 195553323420
