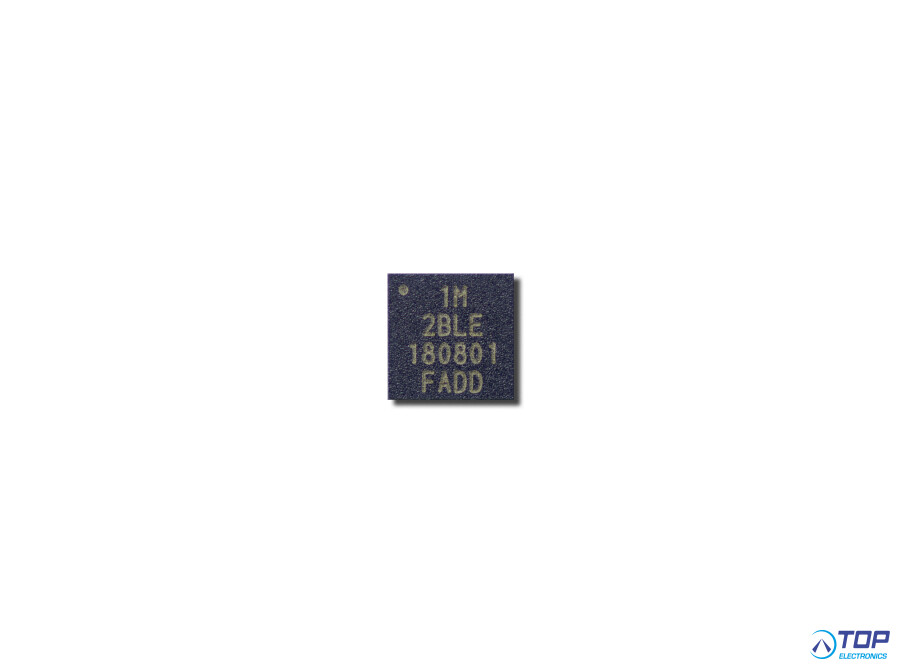

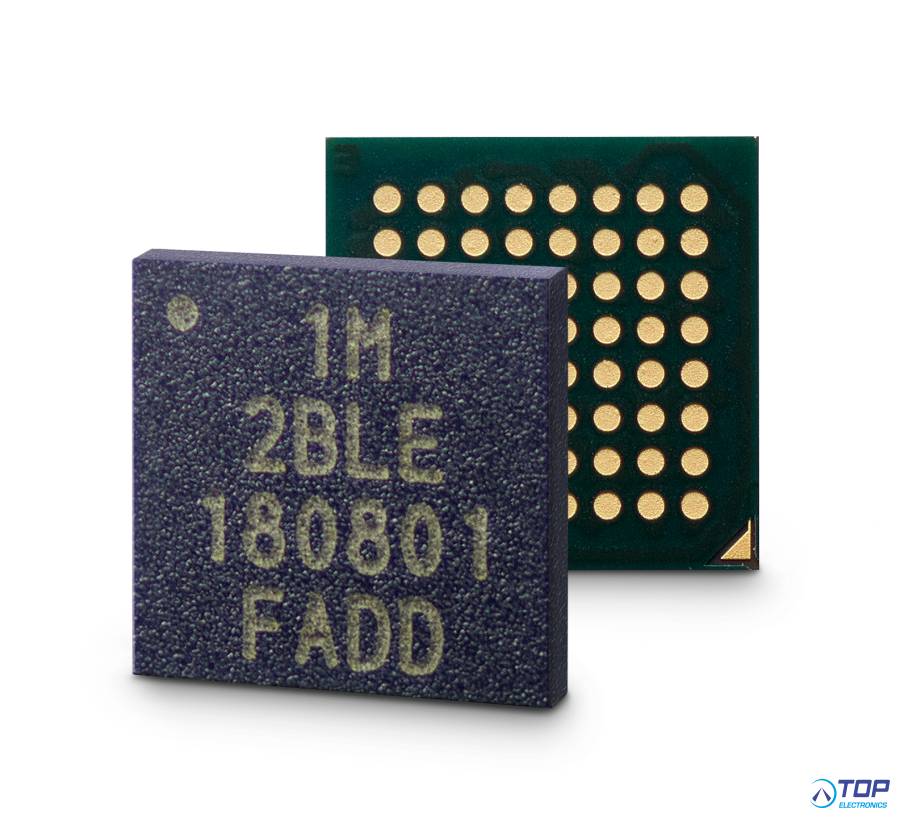

AMA2B1KK-KLR, Apollo2 Blue SoC, 256KB RAM, 64pin LGA

More information

Stock
In stock
Delivery time
if not in stock: 24 weeks
Part number
AMA2B1KK-KLR
Manufacturer / supplier
Ambiq
Product brief
View product brief
Documents
View Documents
Datasheet
View datasheet
€ 1.95 excl VAT

Product specifications

Apollo2 Blue - Ultra-Low Power System on Chip with integrated BLE

THE APOLLO 2 BLUE HAS BEEN ISSUES AS EOL, LAST STOCK AVAILABLE!

The Apollo2 Blue builds upon the industry's best power management efficiency of the Apollo2 SoC Family with a System-In-Package comprised of the Apollo2 SoC and Bluetooth Low Energy controller to deliver a totally integrated Bluetooth Low Energy connectivity solution.

The device offers Bluetooth 5 ready radio and integrates 1 MB of flash memory and 256 KB of RAM to accommodate radio and sensor overhead while leaving space for application code. This System on Chip also includes several masters and one slave SPI and I2C ports and two UART ports for communicating with sensors including accelerometers, gyroscopes, and magnetometers.

Apollo2 Blue adds top rated Bluetooth Low Energy radio capability to an already-existing aray of relevent functionality built around the Cortex®-M4 processor expressly designed for use in IoT and wearables applications.

Features

Ultra-Low Supply Current
- < 10 gA/MHz executing from flash at 3.3 V
- < 10 wA/MHz executing from RAM at 3.3 V
- < 3 PA deep sleep mode with RTC at 3.3 V (Bluetooth in shutdown)

High-Performance Arm® Cortex®-M4 Processor
- Up to 48 MHz clock frequency • Floating Point Unit
- Memory protection unit (MPU)
- Wake-up interrupt controller with 32 interrupts

Integrated Bluetooth@ Wireless Technology BLE5-Compliant Low-Energy Sub-System
- RF sensitivity: -95 dBm
- Rx: 3.5 mA
- Tx output power: -40 dBm to +5 dBm
- AES 128-bit encryption
- Over-The-Air updates (OTA)
- Coexistence with other 2.4 GHz wireless
- Bluetooth SIG profiles support
- Enhanced data rate up to 2 Mbps feature capable

Built-in 32 KHz RCOU Ultra-low Power Memory
- Up to 1 MB of flash memory for code/data
- Up to 256KB of low power RAM for code/data
- 16KB 2-way Associative Cache

Ultra-low Power Interface for On- and Off-Chip Sensors
- 14-bit ADC, 1 1 selectable input channels available
- Up to 2.67 MS/s sampling rate
- Voltage Comparator (VCOMP)
- Temperature sensor with +/-3 0C accuracy after calibration

Ultra-low Power Flexible Serial Peripherals
- 4x 1 2C/SPl masters with 128-byte bidirectional FIFO for communication with sensors, radios, and other peripherals
- Ix 1 2C/SPl slave for host communications with 256-bytes LRAM area for FIFO/host support
- 2x UART modules with 32-location Tx and Rx FIFOs
- PDM for mono and stereo audio microphones
- Ix 1 2S slave for PDM audio pass-through Rich Set of Clock Sources
- 32.768 KHz crystal (XTAL) oscillator
- Low Frequency RC (LFRC) oscillator (1.024 KHz)
- High Frequency RC (HFRC) oscillator (48 MHz)
- RTC based on Ambiq's AM08X5/18X5 family

Wide Operating Range
- 1.755-3.63 v, -40 0C to 85 0C

Applications
- Wearable electronics including smart watches
- Activity and fitness monitors
- Wireless sensors
- Consumer electronics
- Beacons
- Light control applications
- Remote sensing
- Wireless mice and keyboards
- Motion and tracking devices
- Alarms and security system
- Home automation Toys

Package Option

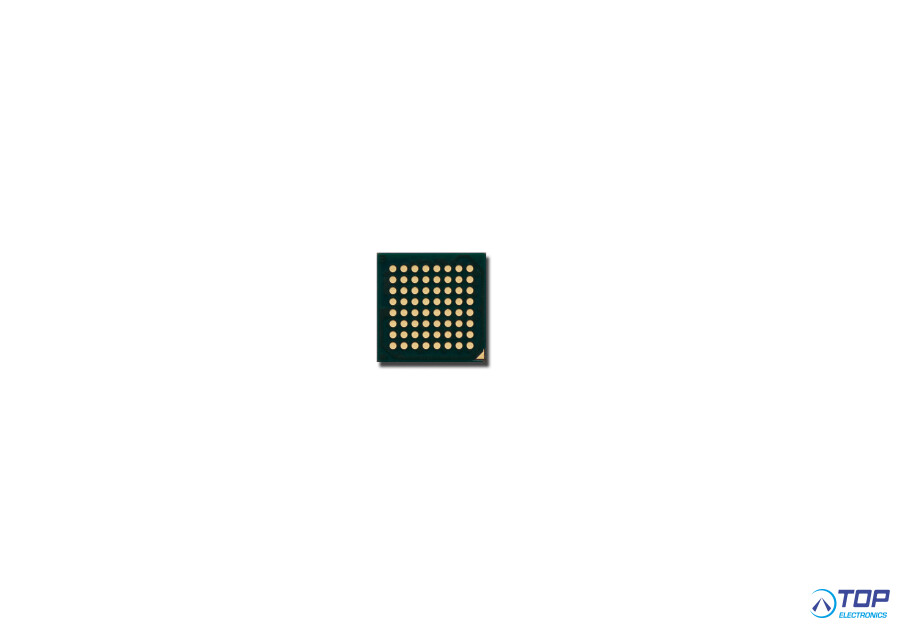

- 4mm x 4mm x 0.9mm 64-pin LGA with up to 31 GPIO

Ordering Information
- AMA2B1 KK-KLR (256KB RAM, 64-pin LGA)

- Ambiq Product -

Related products

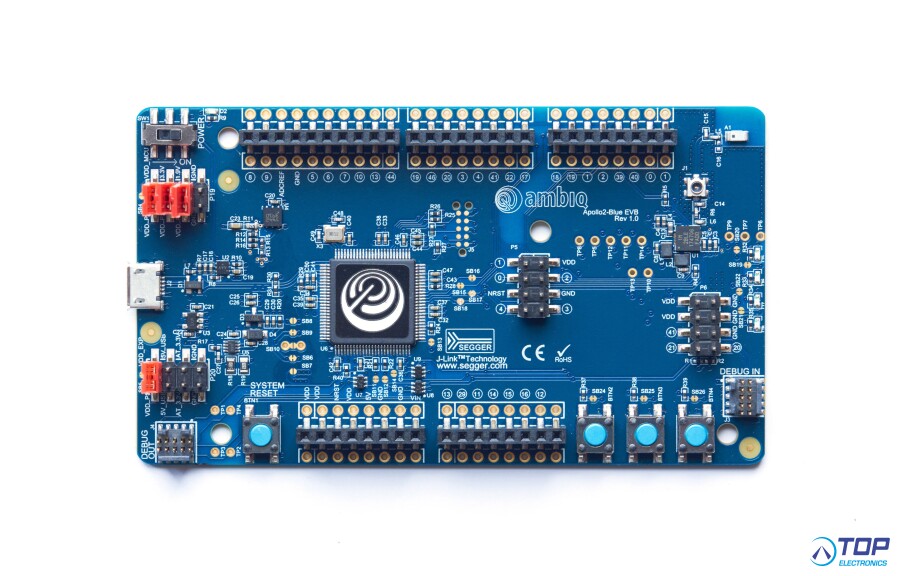

AMA2BEVB

Apollo2 Blue SoC, Eval board

€ 65.00
