Product specifications

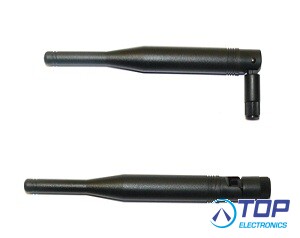

LM251 - 2dBi Antenna RP SMA
The LM251 has a Reverse Polarity SMA Male Connector. LM Technologies can also offer the female receptacle in order to fit the LM254 9Dbi RP SMA Antenna to either a Cable or PCBA.
The LM251 is 105mm long with a diameter of 10mm, it has a 0-90 degree fixed hinge and a floating SMA that allows for 360 degree swivel rotation.
This full dipole antenna has 2dBi of gain and 50Ω impedance VSWR 1.5:1 and a weight of 13g. This small but powerful antenna has been tested in multiple locations and was used within our LM540 testing at Eaton Dorney Olympic rowing park where we achieved just over 800m when attached to the LM540. We can therefore justly offer that it will work fantastically with just about any of the following applications.
RP SMA Antenna 2dBi – LM251
- 2.4GHz WiFi (802.11b/g/n)
- 2.4GHz XBee
- 2.4GHz Bluetooth
LM Technologies also offer SMA to UFL or SMA to iPEx converters with or without cable that add to the versatility for this antenna.
Features
2.4G Dipole 2DBi antenna
SMA Male Reverse Polarity Connector
Matte Black
Benefits
Ideal for our products with SMA antenna connection
Robust design suitable for most environments
Hinged for easy positioning
Low Cost Solution
