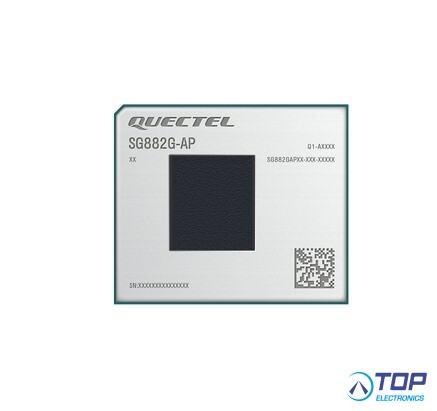

Quectel SG882G-AP - Android/Linux smart module
SG882G-AP is Quectel’s new generation of flagship Android/Linux smart module. Based on Qualcomm’s flagship IoT chipset QCS8550 with built-in maximum octa-core high-performance KryoTM CPU, AdrenoTM 740 GPU, Adreno 1295 DPU, Adreno 8550 VPU, HexagonTM DSP, and SpectraTM ISP. Featuring powerful performance and rich multimedia functions, it is ideal for both industrial and consumer applications requiring high computing power, edge computing and multimedia functions.
A rich set of interfaces (such as LCM, Camera, touch panel, I2S, PCIe, UART, USB, I2C, SPI, etc.) extend the applicability of the module to a wide range of M2M applications, including video conference systems, live streaming devices, gaming, edge computing, robots, AR/ VR, intelligent retail, and smart safety.
Key Features:
- Kryo™ CPU
- Adreno™ 740 GPU
- Hexagon™ DSP + Hexagon Vector eXtensions (HVX) + Hexagon Matrix eXtensions (HMX)
- Spectra™ ISP
- Adreno 8550 VPU
- Adreno 1295 DPU
- Neural processing unit
- Security processing
- Video encoder: 4K @ 120 fps; 8K @ 30 fps
- Video decoder: 4K @ 240 fps; 8K @ 60fps
- Computing power of up to 48 TOPS
Summery:
- Android/Linux smart module
- LGA package
- 33mm x 39mm x 3.85mm
- 12GB LPDDR5X + 256GB UFS
- Quectel Wireless Solutions product -
