9AT2560S-0001, Airflow tester 0.2 - 8.0 m3/min

More information

Stock
Out of stock
Delivery time
please contact us for more information
Part number
9AT2560S-0001
Manufacturer / supplier
Sanyo Denki
Datasheet
View datasheet
Contact us

Product specifications

Airflow tester
9AT2560S-0001

HIRING THE AIR-FLOW-TESTER BELONGS TO THE POSSIBILITIES
PLEASE CONTACT US FOR MORE INFORMATION

Enables the selection of the optimal fan for a device
An optimal fan for a device can be selected by entering accurate measurement results into thermal design simulation software.

Compact and lightweight
With a compact design and weight of approximately 6 kg, it is portable enough to measure immobile equipment.

Model No. : 9AT2560S-0001
Dimensions: 600 (W)× 250 (H)× 250 (D) mm
Measurement range - Airflow 0.20 ~ 8.00[m3/min]
Measurement range - Static pressure 0 ~ 1000[Pa]

Measurement accuracy - Airflow ±7% of maximum airflow measured with each nozzle
Measurement accuracy - Static pressure ±10 Pa (0.04 inH2O) for measurements < 200 Pa, ±50 Pa (0.20 inH2O) for measurements ≥ 200 Pa

Operating temperature 0 ~ 40˚C

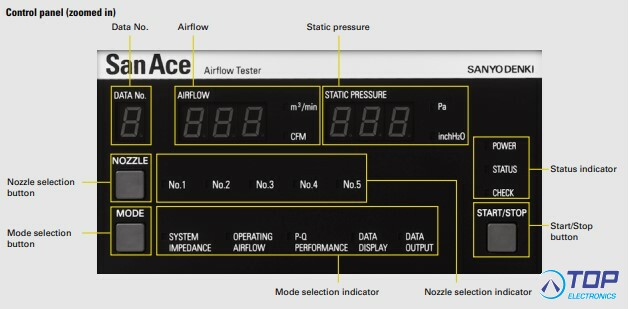

Display: Data no., measurements (airflow, static pressure), status, nozzle selection, measurement mode
Interface Digital output: Dedicated USB serial adapter

Power supply
Input voltage: 100 to 240 VAC,50/60 Hz Power consumption: 260 VA max.

Mass
Main unit: Approx. 6 kg

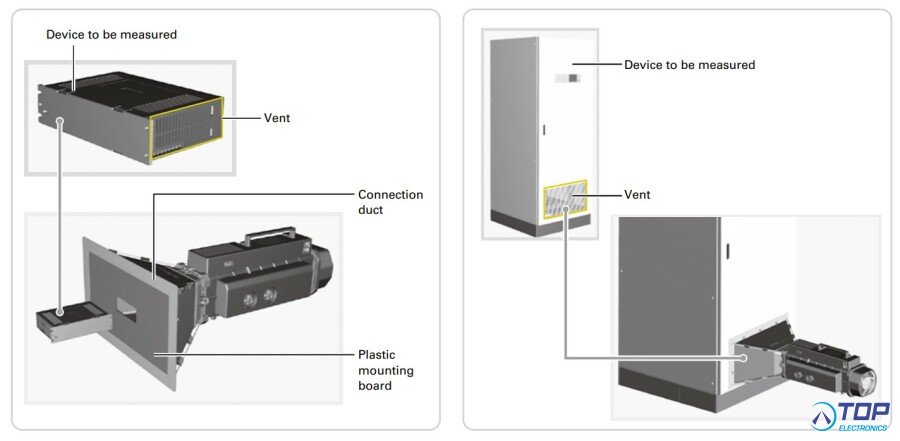

Connection duct (including board holder): Approx. 1.5 kg

Included peripherals
A set of measurement nozzles, plastic mounting board (5 pcs), connection duct, AC power cable (2.5 m), dedicated USB serial adapter, Instruction Manual, Quick Start Guide, Data viewer software

- Sanyo Denki Product -
