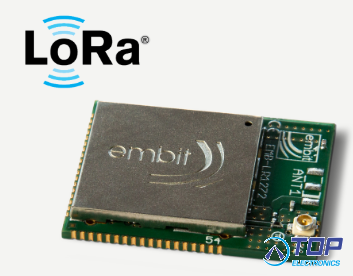

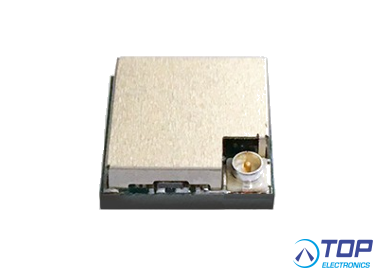

868 / 915 MHz LoRa™ / LoRaWAN™ module
EMB-LR1272 / EMB-LR1272E is a 868 / 915 MHz wireless module that combines high performance to small dimensions and low cost, providing the system integrator a simple and easy way to add LoRa / LoRaWAN long range connectivity into existing products.
Notable features include:
-output power can be set up to +19 dBm (~80 mW) or to +14 dBm (~25 mW)
-sensitivity up to -137 dBm
-extremely reduced power consumption in low power mode (≤3 μA in with a RTC clock running, ≤1 μA in XLP sleep (contact us))
-embedded IEEE EUI-64 address (EMB-LR1272E)
The EMB-LR1272 modules is provided with a embedded LoRa/LoRaWAN stack specifically developed by Embit that allows to be compliant with the latest LoRaWAN specifications, allowing customer to develop firmware application and manage a compatible LoRa eco-system.
The EMB-LR1272 modules ship programmed with EBI-LoRa which allows the customer to use the modules as a simple, ready-to-use modem (using AT-like commands over UART; see EBI protocol page for more information). The evaluation kit EMB-LR1272-EVK is strongly suggested to customers willing to develop their own firmware applications, since the kit provides all tools required to download a custom firmware on the module.
- Embit product -
