Product specifications

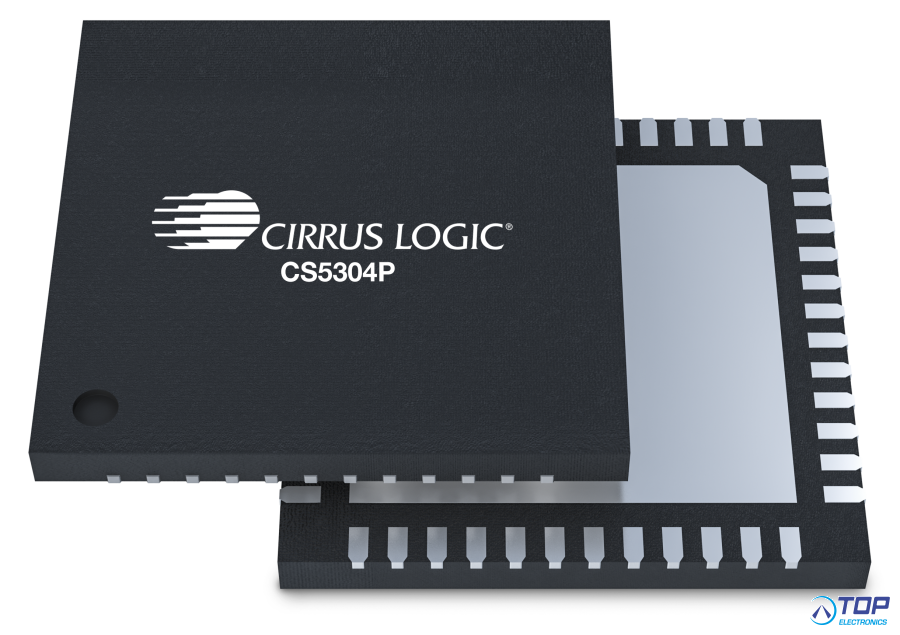

The CS5304P is part of a new series of pro audio converters aimed at providing the most transparent audio conversion within one device that is simple to use and integrate. The CS5304P is a high-performance, 32-bit resolution, four-channel ADC, the device supports differential analog input and 32-bit digital output via the audio serial port (ASP) at sample rates up to 768 kHz. The CS5304P uses a 5th-order, multibit sigma-delta modulator followed by digital filtering and decimation. This provides a dynamic range of over 123 dB and THD+N below -110 dB all within a 25 mW/ch power budget. The device can be powered from a single rail and controlled by either hardware pins, I2C or SPI, making it both flexible and easy to integrate. This, together with Cirrus Logic’s new hybrid gain control feature, makes the CS5304P ideal for digital mixing consoles, DAW interfaces, effects processors and audio/video receivers.
Features
• High performance four-channel ADC
o Differential analog architecture
o High-resolution 32-bit digital architecture
o Low-latency digital filters and digital volume control
• PLL supports range of external system-clock references
• Synchronous operation across multiple devices
• Hybrid gain control
• Audio serial port (ASP) sample rates up to 768 kHz
o I2S, left-justified, and TDM data formats
• Hardware and software control modes
o Hardware control with no host processor required
o I2C control port up to 1 MHz
o SPI control port up to 24 MHz
• Single-supply operation at 3.3 V
o Support for 1.8 V–3.3 V digital input/output
