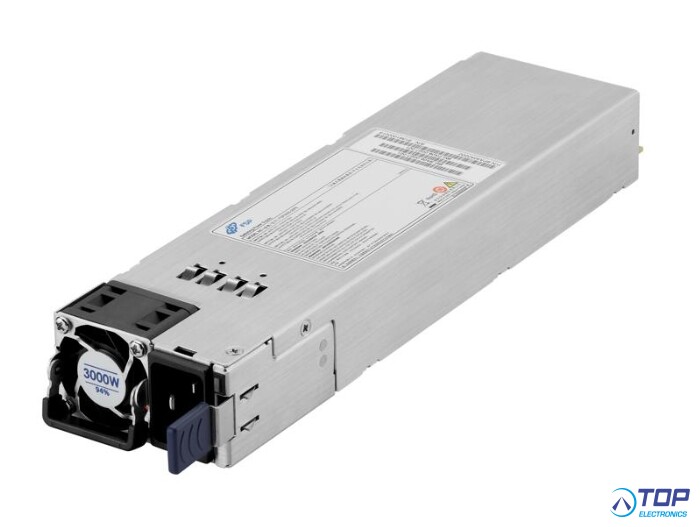

FSP3000-20FE, 3000W Common Redundant Power Supply

More information

Stock
Out of stock
Delivery time
please contact us for more information
Part number
FSP3000-20FE
Manufacturer / supplier
FSP Group
Documents
View Documents
Datasheet
View datasheet
Contact us Technical support Quotation request

Product specifications

FSP3000-20FE Power Solution for Data Center & AI Application

FSP group has developed exceptionally high power 3000W CRPS (Common Redundant Power Supply ) ultra-high density (83.4 W/inch3) Power Module FSP3000-20FE, to fulfil the need for high power required to drive Data centre and AI servers architectures.

One of the most important features in this CRPS is referred to its Cold Redundancy, used to reduce the input power of idle systems. Cold redundancy accomplishes this by putting the power supply itself into a kind of idle state alongside the server. It is more efficient for fewer power supplies to be active while the others in the system remain in standby mode to achieve an outstanding efficiency advancement.

FSP3000-20FE has a universal input range of 90 to 264 VAC. It supplies 3000W / +54VDC and +12Vsb outputs, efficiency 94% minimum , housed in a compact 265 x 73.5 x 40 mm, 1U rack mountable chassis . It supports OCP, OTP, OVP and OPP circuit protection, with operating temperature range of 0 to 55° , operation altitude from see level to 5000m . the power supply complies with UL, CE , FCC and CB safety standard.

The module is compliant with CRPS 2.2 peak power specifications with better performance and 80Plus Platinum Efficiency, to reduce power loss, heat waste and improve system reliability. Furthermore, it is equipped with PMBus 1.2 Communication Protocol Interface, for real-time monitoring and controlling the power supply status. Last but not lease it equipped with a hot-swapping feature to fulfil the need for server’s always on / no shutting down requirement in such demanding applications.

Features:
- 3000W Output, +54V, +12Vsb
- 80PLUS Platinum
- Working temperature: 0 to 55°C
- Cold Redundant; Hot Swapping
- Support OCP, OTP, OVP and OPP circuit protection
- Operation: sea level to 5000m
- PMBus 1.2

General specifications:

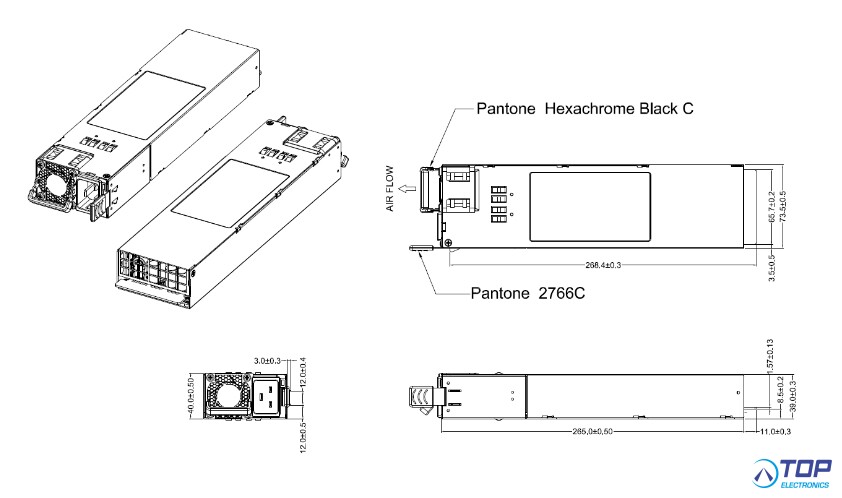

- Dimension (L x W x H): 265 x 73.5 x 40 (mm)
- Efficiency: 94% minimum
- Hold-up time at 100% loading: 115V / 60Hz: ≥ 10ms - 230V / 50Hz: ≥ 10ms
- Surge Immunity: Differ. Mode 1KV, Common. 2KV

Environment:
- Working temperature: 0°C to 55°C
- Storage temperature: -40°C to + 70°C
- Working humidity: 90% RH non-condensing
- Storage humidity: 95% RH non-condensing

- MTBF (SR-332 Issue 2): 250,000 hours of continuous operation at 40°C, 75% output load
- Applications: Data Center, Storage System, IPC Controller

Input specifications:
- Input voltage: 90-264Vac, 180~310V HVDC
- Input frequency: 47-63Hz
- Input current: max. 115Vac @ 1400W, 230Vac @ 14.9A, 3000W

- FSP Protek Product -
