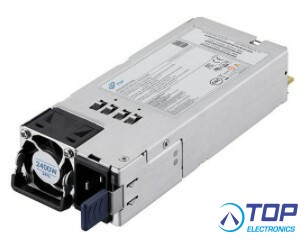

FSP2400-20FM, 2400W Redundant Power Supply

More information

Stock
Out of stock
Delivery time
please contact us for more information
Part number
FSP2400-20FM
Manufacturer / supplier
FSP Group
Datasheet
View datasheet
Contact us

Product specifications

FSP2400-20FM is a redundant power supply module base on CRPS standard. The power supply comes to offer the total power
capacity up to 2400 Watts, and provides PMbus features, which makes it be able to communicate with motherboard. In addition, the
power supply is ideally the best choice for datacenter, workstation, communication or any other automation applications to use. The
product also complies with the latest safety and EMC standards, which is perfectly to meet various regulations worldwide.

Features:

- Certified CB 62368-1 & CB 60950-1
- Meet 80 Plus Platinum
- Meet CRPS Standard
- Meet PMBus 1.2
- Design for 5,000 Meter above sea level
- High Reliability
- Low Ripple & Noise
- Over Current Protection
- Over Temperature Protection
- Over Voltage Protection

General specifications:

Dimension (L x W x H): 185 x 73.5 x 39 (mm) / 7.28 x 2.89 x 1.53 (inch)
Efficiency: 80 Plus Platinum
Hold-up time: 70% of Max. load at 12V >10ms
Operating altitude: 5,000 meters above sea level

Environment
Working temperature: 0°C to 50°C
Storage temperature: -20°C to + 80°C
Working humidity: 5% to 90% RH non-condensing
Storage humidity: 5% to 95% RH non-condensing

MTBF (SR-332 Issue 2): 100,000 hours of continuous operation at 25°C, 100% output load
Applications: Storage System , Workstation, Industry Controller

Input specifications:
Input voltage: 90-264Vac
Input frequency: 47-63Hz
Input current: Max. 16A

- FSP Protek Product -
